The BSPM02-4 Bellows Forged Steel Steam Distribution Manifold (A105) integrates all essential steam distribution components, such as bellows stop valves, branch pipes, and Y-type filters, into a single unit. It features a forged A105 steel body, making it suitable for high-pressure industrial steam pipeline systems, including those for tracing, heat preservation, and temperature control.
Home/Bellows Forged Steel Steam Distribution Manifolds · BSPM028-8-20-680-170-85-135-75-168-58-M12-212/
Product Characteristics 1
YUWENER
,Nominal Pressure
PN16/Class 300
Max Temperature (PN16)
400°C
Max Temperature (Class 300)
550°C
Max Work Pressure (PN16)
5.13MPa
Max Work Pressure (Class 300)
6.89MPa
Body Material
A105
Bellows Material
SS304
Packing Material
SS304
Gasket Material
Flexible graphite
Standard
GB12216-1989, GB/T 5013-2000, GB/T12927-2008, GB/T1048-2019
Product
BSPM02-8
Ports
8
Main Bore
20
A
680
B
170
C
85
L1
135
L2
75
W1
168
W2
58
M
M12
Weight_kg
21.2
Body (管束体)A105
Fittings (管件)A105
Bellows (波纹管)SS304
Packing (填料)SS304
Gasket (垫片)Flexible graphite

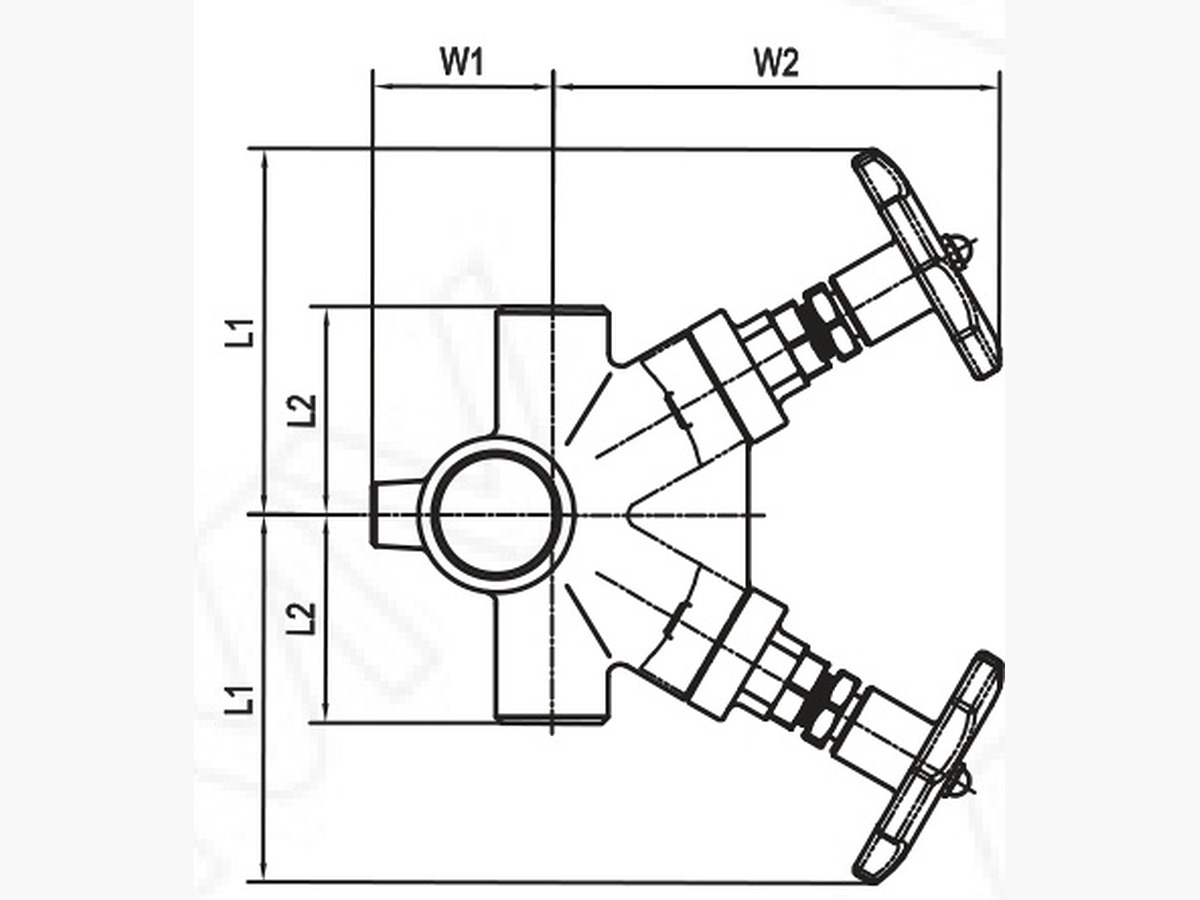

- Technical Drawing 1

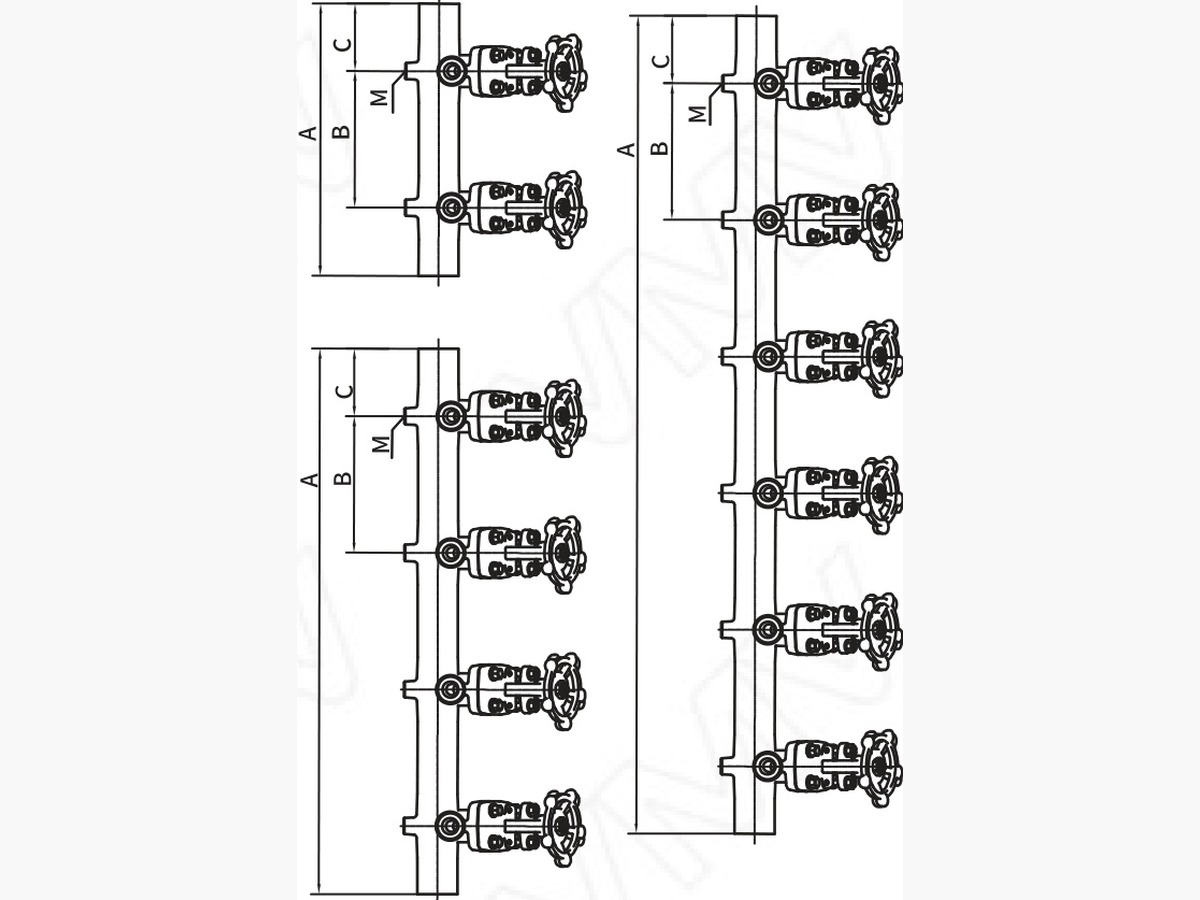

- Technical Drawing 2

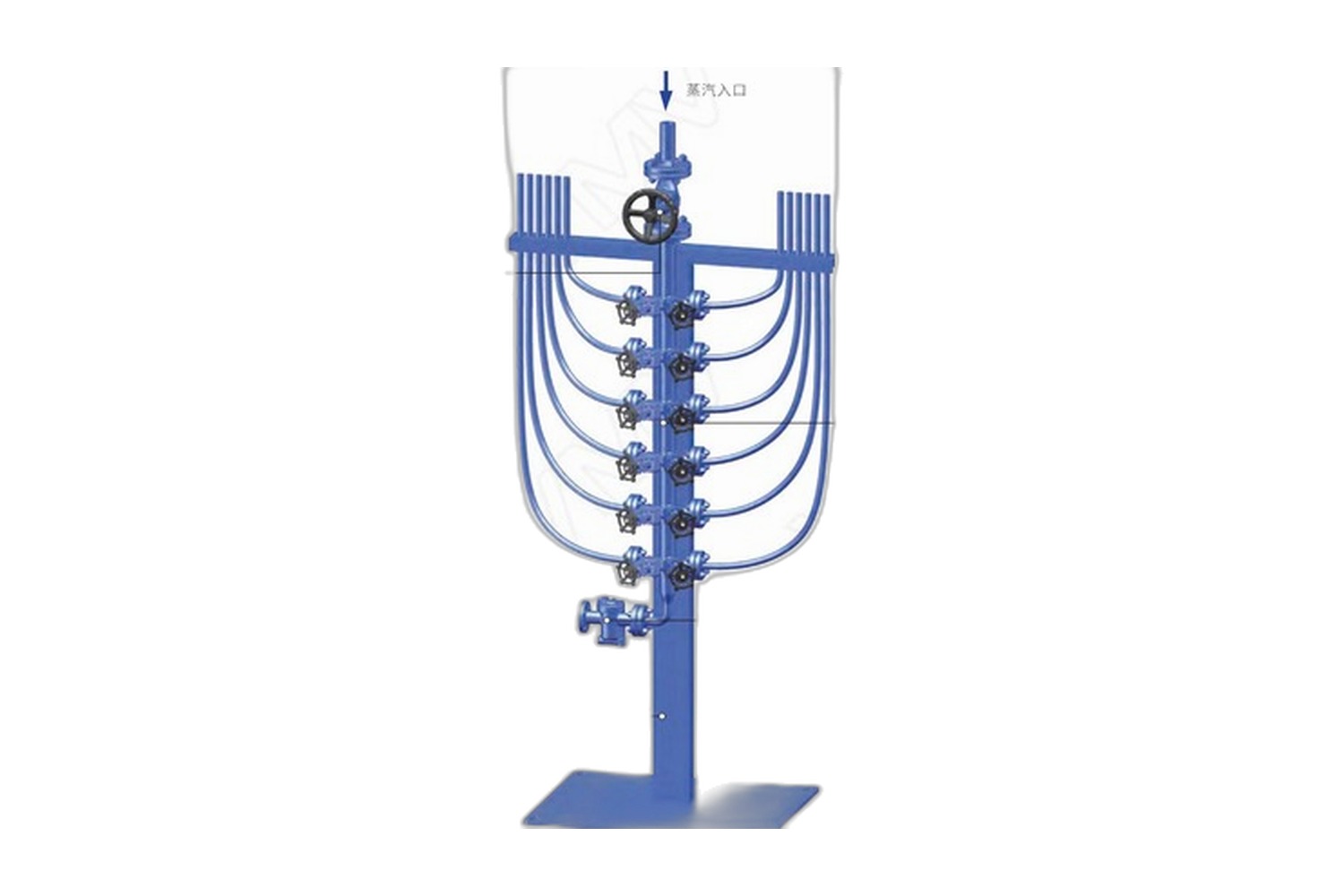

- Related 1
Product Description
Technical Parameter
Configuration List
