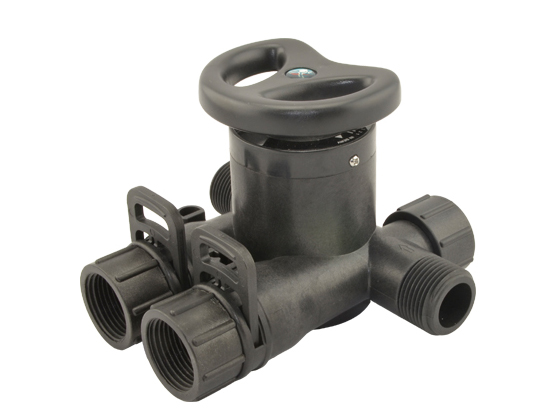

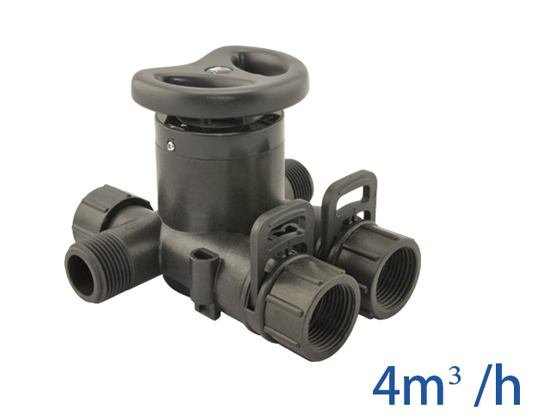

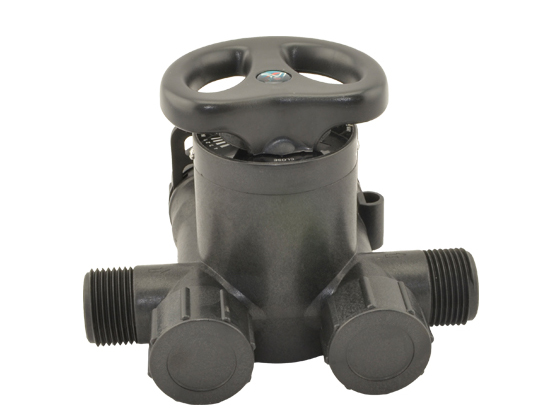

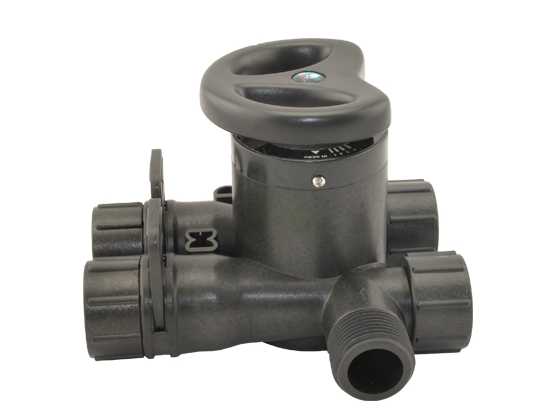

Bypass Valve 41104(F70A)

Name: Bypass Valve 41104(F70A)
Brand: Wenzhou Runxin Manufacturing Machine Co. Ltd
SKU: 643fd4ece310470e86b4cc2b2df03596
Price: 83 USD
Availability: InStock
Rating: 4.8 (20 reviews)

Mainly used for controlling the bypass of incoming water in water treatment systems. Suitable for use with F63, F68, and other Runxin control valves. When the water softening system needs maintenance, the bypass function of the bypass valve can be used to supplement the untreated raw water to the outlet. When used in domestic water softening systems, since very soft water is not suitable for drinking, the bypass valve can be used to mix some untreated raw water directly from the outlet with soft

$83

Select Model

Inventory: 1
Scope of application
Terms of trade

Wenzhou Runxin Manufacturing Machine Co. Ltd

ZheJiang-WenZhou, China

- Simple structure with reliable sealing F70A/F70B uses high flatness and corrosion-resistant end surface sealing, reliable sealing; integrates operation, closing, bypass, and partial bypass functions.
- Easy operation Directly rotate or pull the handle to achieve bypass, partial bypass, and softening operation functions.
- Can be installed internally

Tell Us What You Need

History search

Fuzzy search

Wenzhou Runxin Manufacturing Machine Co. Ltd

Simple structure with reliable sealing F70A/F70B uses high flatness and corrosion-resistant end surface sealing, reliable sealing; integrates operation, closing, bypass, and partial bypass functions.

Easy operation Directly rotate or pull the handle to achieve bypass, partial bypass, and softening operation functions.

Can be installed internally

Model

41104(F70A)

Inlet/outlet

1" M

Drain Port:

1" M

Water Output:

4 m³/h

Nominal Pressure:

0.6MPa

Suitable Temperature:

5°C ~ 50°C

Product Description

Technical Parameter
