Main feature

1.Applying hydraulic oil pump, the transmission is more stable and faster, the pressure is large and uniform.
2. Running in circle, production capacity improves more than triple.
3. Having extrusion system with automatic constant temperature,rotatory speed can be matched with turn plate rotatory speed.

Stability

Stable. Integrated swing design, high precision double pumps hydraulic system,PID operation control low pressure clamping and high pressure forming,the processrunning stable.

Efficency

High efficiency.New type high speed feeding system,multi-mould continuously highspeed spinning,vacuum absorption cap making,high production efficiency.

Energy Saving

Energy saving.Polymer low temperature molten,low-energy heating and cooling process.

Material Saving

Material saving.Intelligent temperature control extruding,pellet quantified cutting,stablegram weight,raw material is fully utilized.

Safety

Safety. Intelligent logic control system,automatic monitoring and alarm,automadiagnosis and protection.

Sanitation

Clean.Cap supply-blow-tIIl-cap bloCK System,on-lIne cap making and supplying,clean and sanitary.

Working Principle：

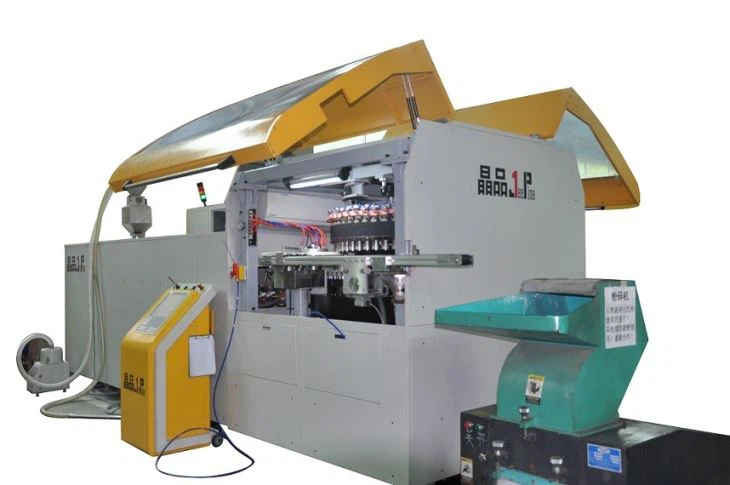

The automatic compression molding and capping machine adopts the upper and lower multi-mode high-speed rotary compression molding process to manufacture plastic bottle caps such as water beverage cover, medical cover, daily lid and wine cover. The granular plastic raw materials (such as PE, PP, etc.) are melted at a high temperature and then quantitatively extruded from the nozzle through an extruder, and then cut and evenly distributed into the respective cavity by the cutting tray, and finally pressed and formed in the cavity.

Application requirements：

The crystal product compression molding capping machine breaks through the key technology of the plastic machinery industry in the plastic molding method, and solves the problems of high energy consumption, high material consumption and low production efficiency of the traditional plastic machinery, and meets the needs of customers at home and abroad. Applicable to the production of mineral water bottle caps, dairy bottle caps, carbonated beverage bottle caps, high temperature juice caps, cosmetic caps, medical supplies caps, edible oil caps and other plastic caps.

Equipment advantages：

The cap made by the equipment has no injection point, the cap is of good quality, the appearance is beautiful, and the product quality is at the leading level in the same industry. The equipment is simple to operate, saves electricity, saves water, saves raw materials, saves labor, and saves a lot of cooling water and no runner waste. High productivity, continuous flow process, easy replacement of materials and molds, accurate and stable transmission, scientific process, compact structure, small floor area and high return on investment.

Founded in 2008,Jeepine is the poineer of cap compression molding machine, who is the Chinese standard draft unit of Plastic cover cap making machine.Moreover,We have achieved more than 100 national patents and passed ISO9001 qualiy managment system certification,UL certification.
Up to now,we have researched and developed major production: CCM-JP24D,CCM-JP24E,CCM-JP36E,CCM-JP48E etc high quality compression plastic bottle cap machine.,and a variety of Matching mould for Mineral water,beverage,medical treatment bottle cap,like 1881,1810,2925,3025,38and Alaska cap,26/22 and so on.
