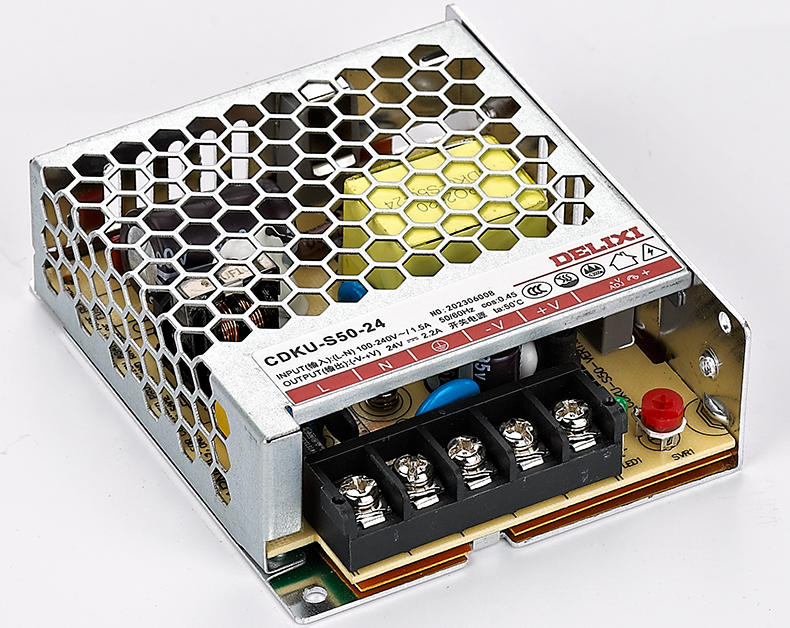

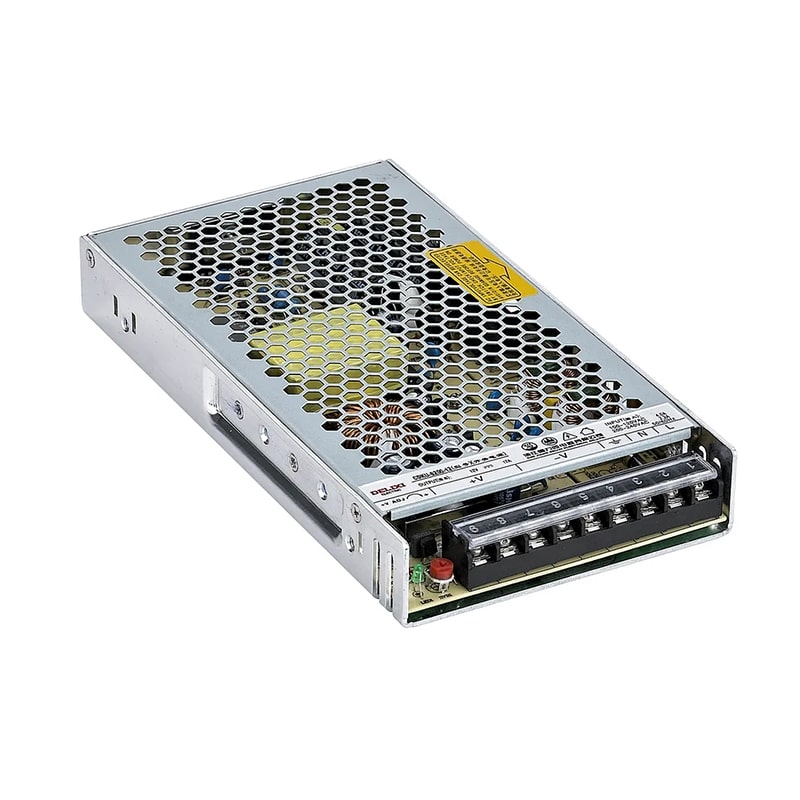

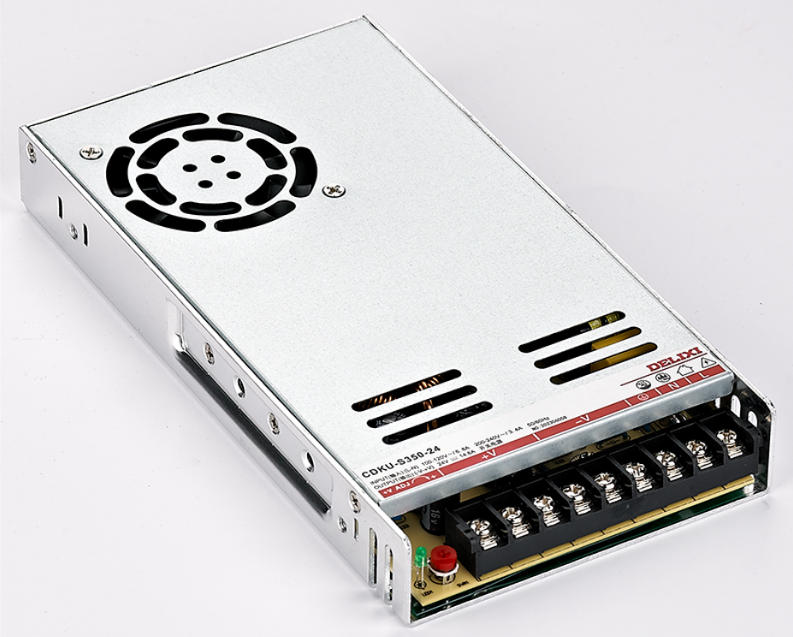

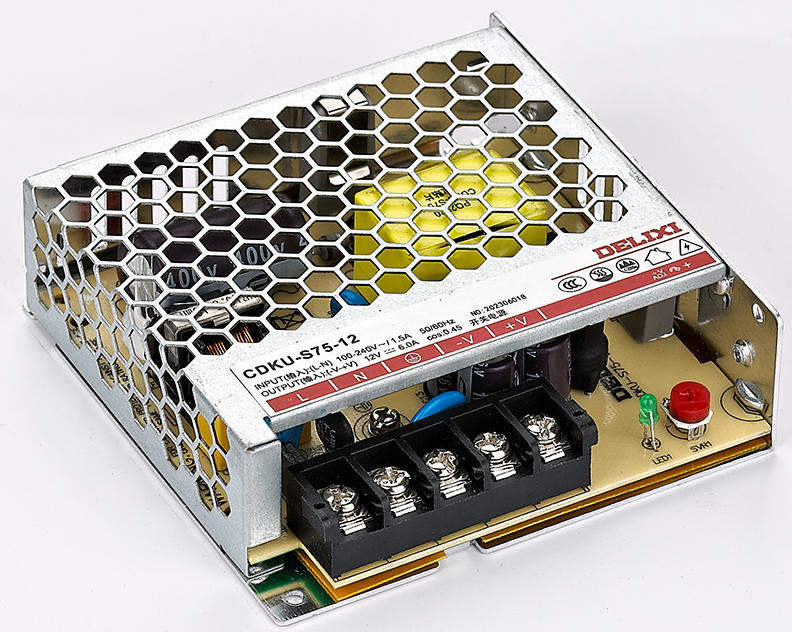

CDKU-S series is a single output, ultra-thin high-efficiency low-power switching power supply. It adopts international full range AC input and ultra-thin appearance design, and can continuously output 5V, 12V, 15V, 24V, 36V, 48Varbitrary DC, and can provide AC/DC power solution for a variety of industrial applications.

Product Characteristics

● 30 mm ultra-thin design
● 90 ~ 264VAC full range AC input
● Low power consumption
● High-frequency PWM control technology
● 100% full load aging test
● Over voltage, over load, short circuit, over temperature (200 W, 350 W) protection
● LED working indicator
● CE, RoHs, EMC
● Working altitude 2000 m

Compact size：

1. Advantage selling point: the whole series is designed with a thickness of 30 mm, and the size has an absolute advantage over the same mainstream products in the market.
2. Customer benefits: similar products with the same power section which can save 20% of the installation space for customers.

The specifications are complete

1. Advantages selling point: Provide 7 different power section specifications of power supply products, output voltage ± 10% adjustable
2. Customer benefits: wide range of product choices, cost-effective, reduce unnecessary losses

Excellent performance

1. Advantages selling point: the use of high-quality raw materials, excellent product performance
2. Customer benefit: No-load power consumption as low as 0.2 ~ 1 W, efficiency ≈ 89%

Safety protection

1. Advantageous selling points: standard terminal protection cover
2. Customer benefits: prevent electric shock caused by touching the block terminal by mistake, and effectively improve use safety

Hiccup protection

1. Advantageous selling points: Overload and short circuit protection of the whole series of products are "hiccup" protection modes.
2. Customer benefits: to meet the needs of OEM customers for protection methods

Easy to install

1. Advantageous selling points: flexible selection of 2 installation modes including flat panel installation and guide rail installation (optional
   installation accessories are required), and fool proofing hole installation
2. Customer benefits: to meet the needs of customers for different installation methods, the fool proofing hole can effectively avoid the
   risk of short circuit caused by different lengths of installation screws

Standards: GB 4943.1

Remarks：CDKU-S35W/12Vultra-thin low power consumption switching power supply,code：CDKUS3512; Can be directly interchanged with LRS series switching power supply；

Note 1: 85-132/170-264VAC selection method: F: full range; S: switch selection.

Note 2: Function A: Overload (overcurrent) short circuit protection; B: Output over voltage protection; C: Over temperature protection; K: Output LED display.
