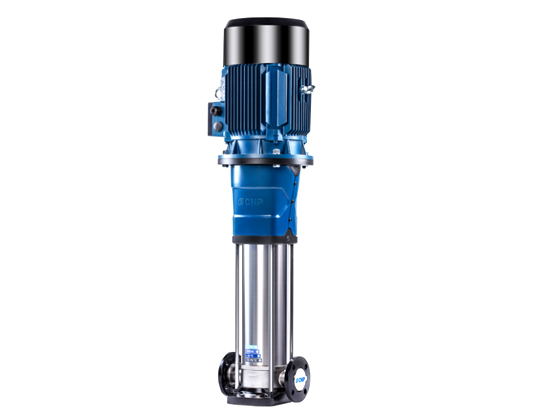

The Nanfang Pump CDM/CDMF series is a new generation of high-efficiency non-self-priming vertical multistage centrifugal pump independently developed according to the latest European standards. The product adopts a brand-new industrial design, with an energy efficiency index of MEI≥0.7. It features energy saving, low noise, environmental protection, compact structure, beautiful appearance, light weight, convenient use and maintenance, and high reliability.

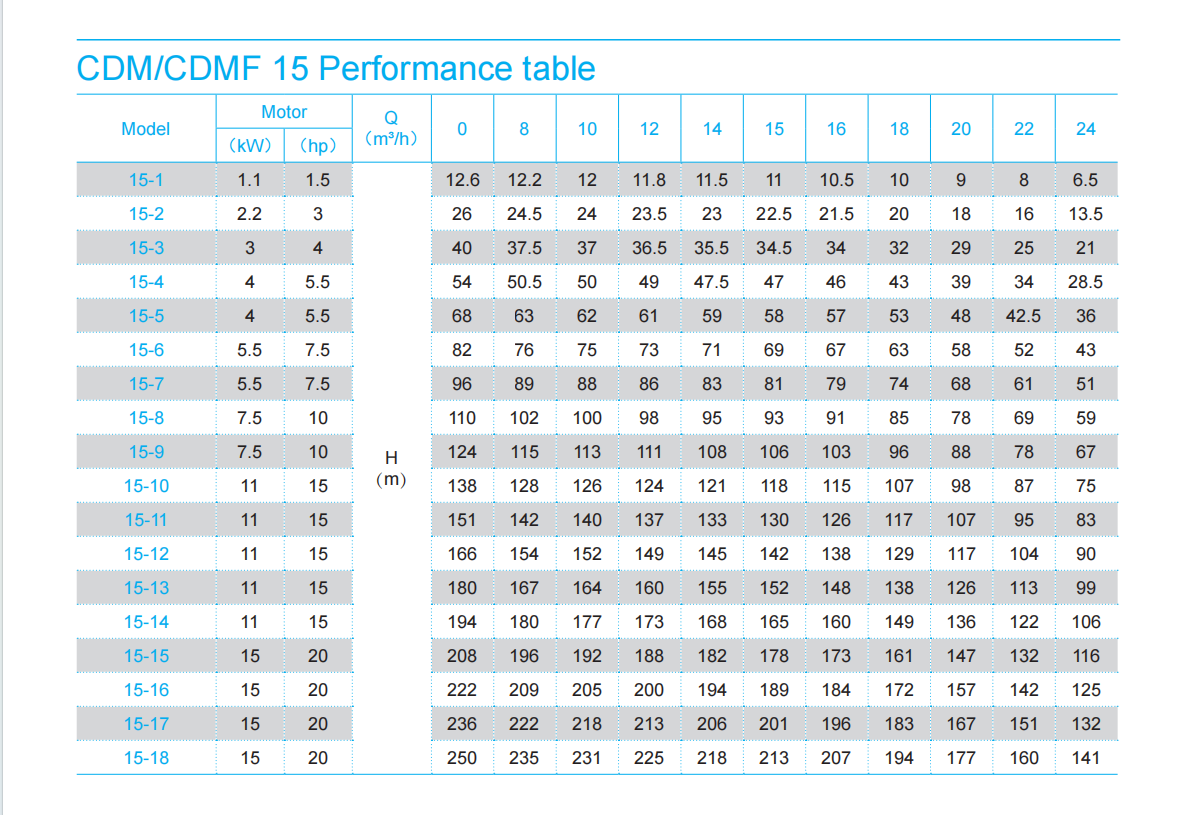

The parameters of the Southern Water Pump CDM/CDMF15 series are as follows:

Flow rate: 15 m²/h;

Efficiency: 71%;

Speed: 2900 rpm;

Impeller outer diameter: 105.2 mm;

Mechanical seal: CDLA-16/WBF14;

Medium temperature: Normal type -15°C~+70°C;

Hot water type -15°C~+120°C;

CDMF: Represents the fluid being 304 or 316L stainless steel.

Material: Cast iron or 304/316L stainless steel.

Performance and advantages:

High efficiency and energy saving, compact structure, easy disassembly and sealing, convenient maintenance, pipeline installation, and small installation space.

Applications:

• Water plant filtration and transportation, zoned water supply, main pipe pressurization, secondary water supply for high-rise buildings
• Process water systems, cleaning systems, high-pressure flushing systems, fire protection systems
• Cooling, boiler feedwater and condensation systems, machine tool accessories, acid and alkali treatment
• Air conditioning systems
• Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools
