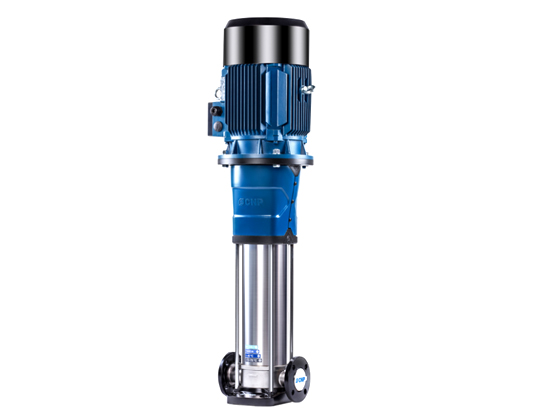

CDM/CDMF pumps are new generation, high efficiency, non-self-priming vertical multistage centrifugal pumps (Abbr. as pumps). It referred European standard, used entirely new industrial design. It is energy saving, low noise, environment friendly, compact design, beautiful shape, light, easy for service, high reliability.
Model Designation & CNP Nanfang Pump Industry CDM/CDMF Series
CDM F 10 - 2
│ │ │ │
│ │ │ └───────────── Number of stages
│ │ │
│ │ └──────────────────── Rated flow (m³/h)
│ │
│ └──────────────────────── (Standard type omitted) Wetted parts are stainless steel 304 or 316L
│
└───────────────────────────── Light vertical multistage centrifugal pump
Motor
The motor is a fully enclosed, air-cooled, two-pole standard motor.
Protection Class: IP55
Insulation Class: F
Standard Voltage: 50Hz: 1x220V 3x220/380V 3x380V
Applications:
CDM/CDMF is a multi-purpose product capable of conveying various media, from tap water to industrial liquids, adaptable to different temperature, flow rate, and pressure ranges. CDM is suitable for non-corrosive liquids, while CDMF is suitable for mildly corrosive liquids.
Water Supply: Water plant filtration and transportation, zoned water supply in water plants, main pipe pressurization, secondary water supply for high-rise buildings.
Industrial Pressurization: Process water systems, cleaning systems, high-pressure flushing systems, fire protection systems.
Industrial Liquid Transportation: Cooling, boiler feedwater and condensate systems, machine tool accessories, acids and alkalis.
HVAC: Air conditioning systems.
Water Treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools.
Operating Conditions:
A thin, clean, non-flammable, non-explosive liquid containing no solid particles, fibers, or with physical and chemical properties similar to water.
Liquid Temperature: Standard type -15°C to 70°C; Hot water type -15°C to 120°C
Ambient Temperature: Maximum +40°C
Altitude: Maximum 1000m
