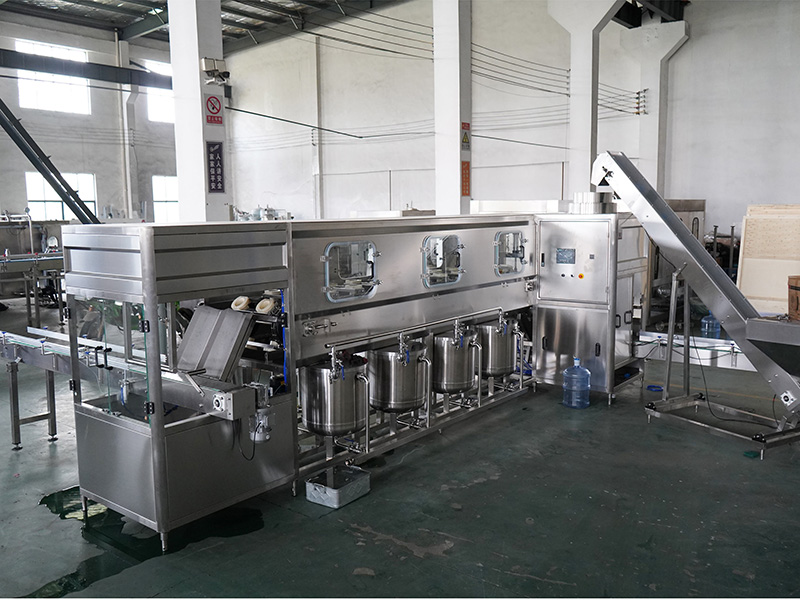

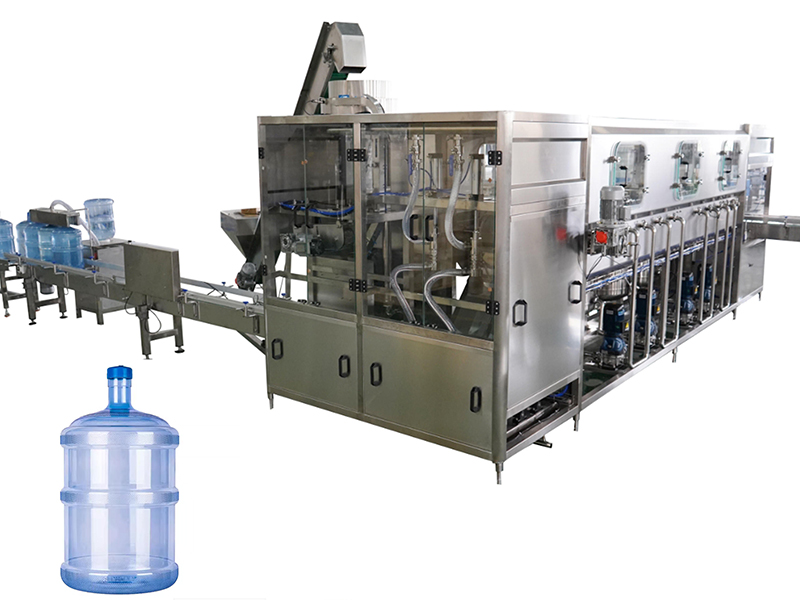

Features of Automatic 5 Gallon Barrel Water Filling Machine
This production line is designed for the production of 5 gallon barrels of drinking water. The machine has the functions of washing,filling and sealing. It is an ideal equipment for producing mineral water, distilled water and purified water. Overall use of high quality stainless steel production, corrosion resistance, easy to clean. This machine has compact structure, high working efficiency, stable and reliable, sensitive and correct action, high automation degree, it is the mechanical, electrical and gas three-in-one automatic drum equipment.
Parts of 5 Gallon Water Bottles Washing Sealing Filling Machine

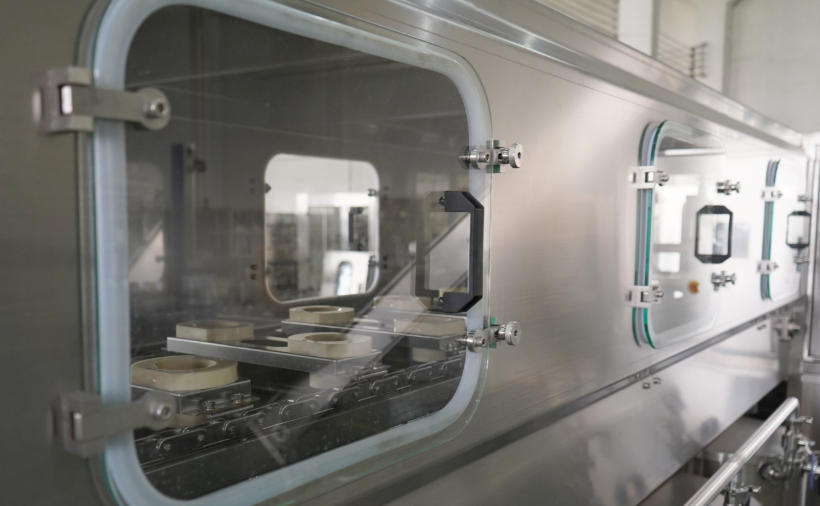

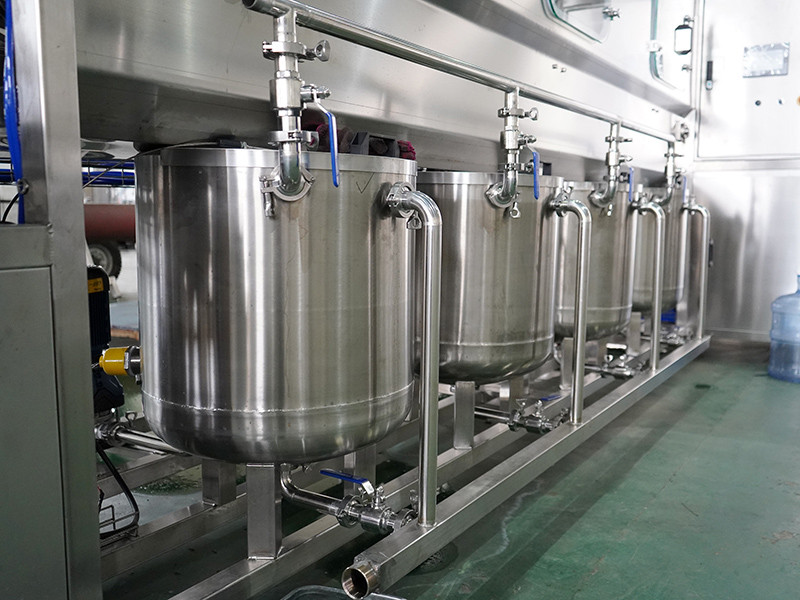

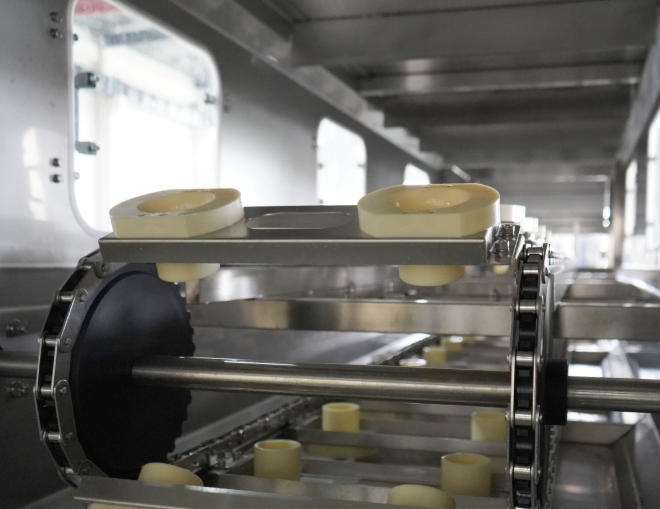

Rinsing part
1). Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2). Washing nozzles can insert into 10-15 cm of the barrel in order to rinse impurities down. Rinsing pump is separately controlled by PLC.
External Washing Machine
Using the dial wheel into the bucket, the two sides are respectively umbrella shaped vertical brush, the bottom is a flat brush, so that the empty bucket to reach the maximum brush brush contact scrub surface, effectively remove the dirt outside the bucket, and with bucket spray function, the water tank of the brush machine is divided into two groups, can use water purification or washing liquid.

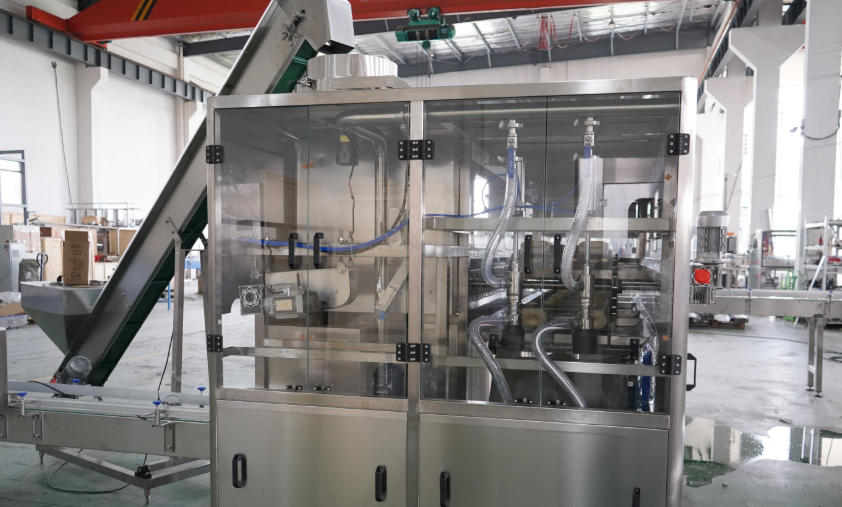

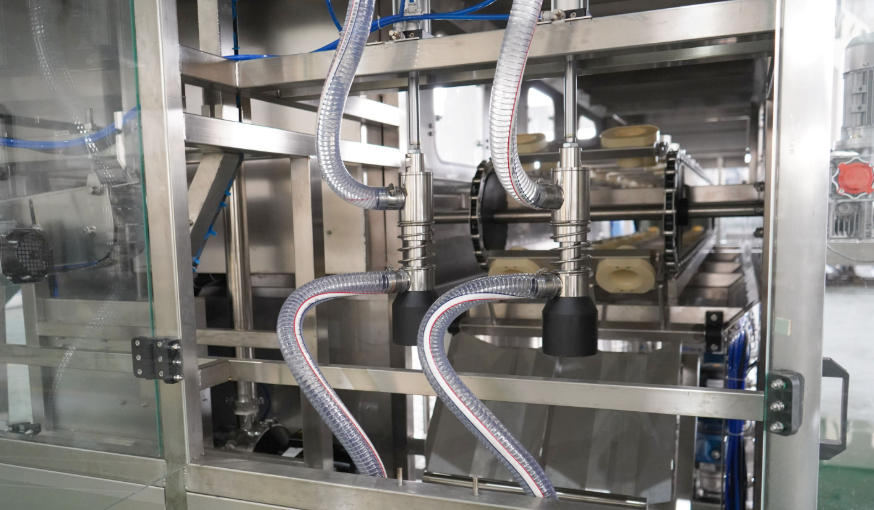

Filling part
1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling valve manufactured by SUS304.
4). The filling valve structure design is reasonable, the filling quantity is accurate.
2). The rotating disk is all made of SUS304 stainless.
3). Filling valve manufactured by SUS304.
4). The filling valve structure design is reasonable, the filling quantity is accurate.

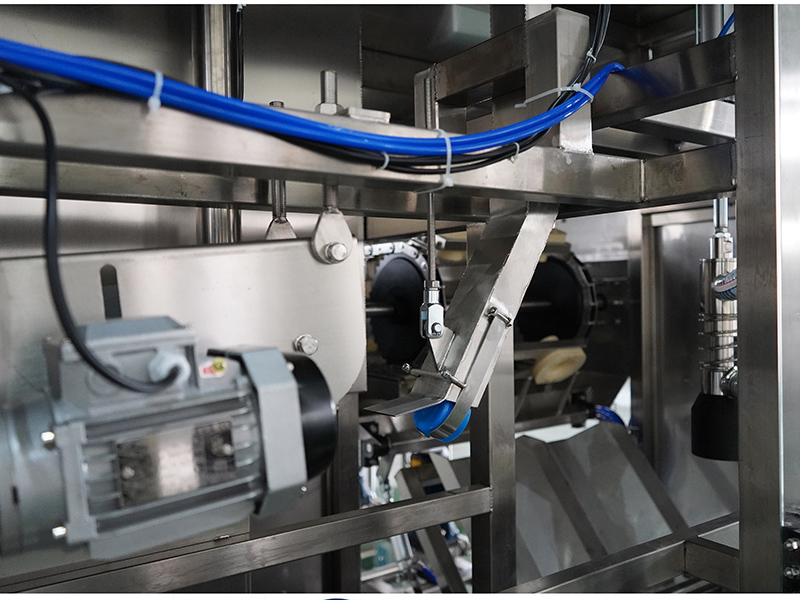

Auto capping Machine
It is driven by a geared motor and walks in a straight cycle. It is mainly composed of brackets, mounting base plates, transmission chains, conveyor belt connection components, and safety shields.
|
5 Gallon Barrel Water Filling Machine
|
||||||
|
Model
|
CGF-100
|
CGF-200
|
CGF-300
|
CGF-400
|
CGF-600
|
CGF-1200
|
|
Filling Heads
|
1
|
2
|
2
|
3
|
4
|
8
|
|
Volume(L)
|
3&5
|
|||||
|
Barrel Size
|
270&490
|
|||||
|
Capacity(b/h)
|
60-100
|
120-240
|
250-350
|
400-450
|
600-800
|
1000-1200
|
|
Gas Pressure(Mpa)
|
0.4-0.6
|
0.4-0.6
|
0.4-0.6
|
0.6
|
0.6
|
0.6
|
|
Gas Consumption(m3/min)
|
0.37
|
0.37
|
0.6
|
0.8
|
1
|
1.8
|
|
Motor Power(kw)
|
1.38
|
1.75
|
3.8
|
3.8
|
7.5
|
13.5
|
|
Rated Voltage(V)
|
380V/50HZ
|
|||||
|
Weight(kg)
|
680
|
800
|
1500
|
2100
|
3000
|
4500
|
