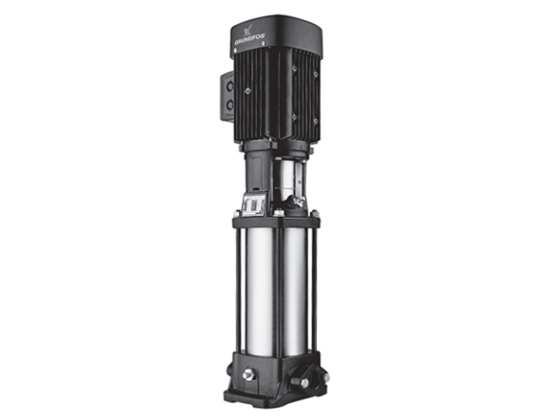

CR, CRI and CRN pumps are vertical multistage centrifugal pumps. The in-line design of the pump enables it to be installed in a horizontal single-pipe system where the inlet and outlet are at the same level and have the same pipe size. This design makes the pump more compact.

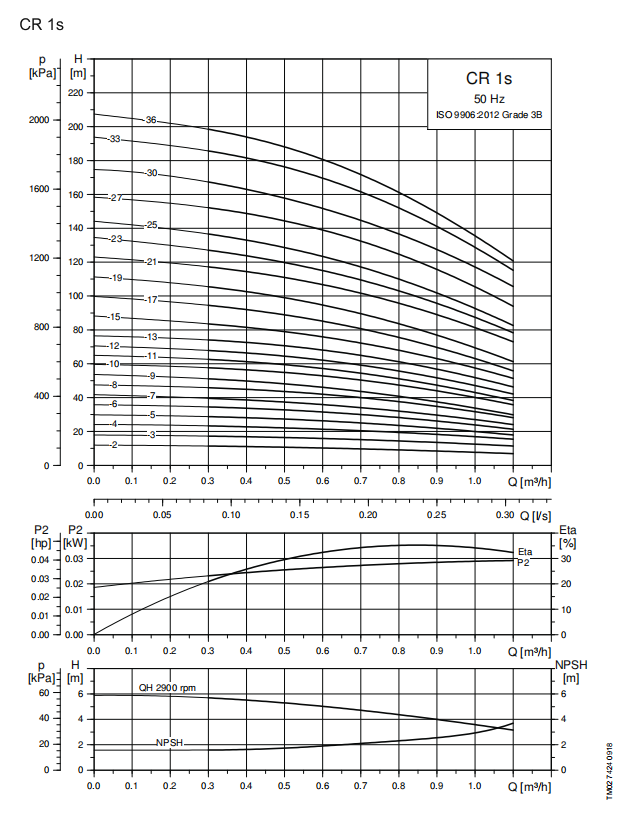

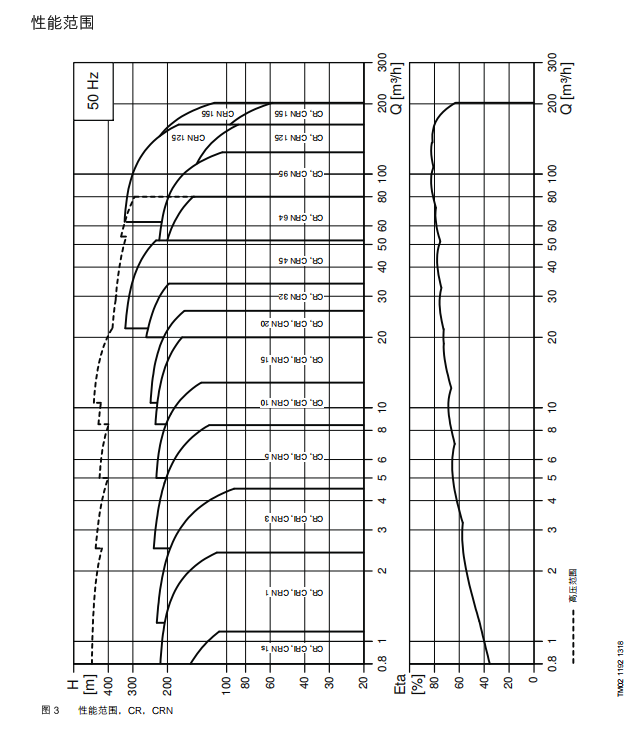

CR pumps are available in various sizes and stages to meet different flow and pressure requirements.
CR pumps can be used in a variety of applications such as pumping tap water and liquid chemicals. Because
Therefore, the pump can be used in many pumping systems with specific requirements for pump performance and materials.

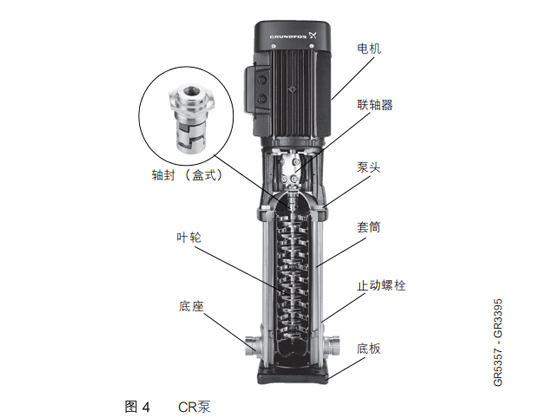

The CR pump consists of two main components: the motor and the pump unit.
The motor complies with EN standards and is either a Grundfos or Siemens motor.

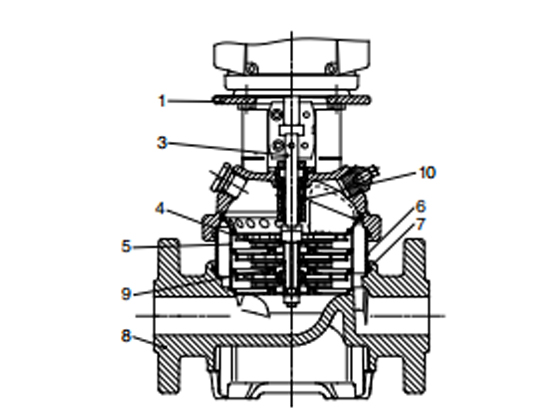

The pump unit is composed of an optimized hydraulic system, various connection devices, pump casing, pump head, and other components. See Section 2. Structure.

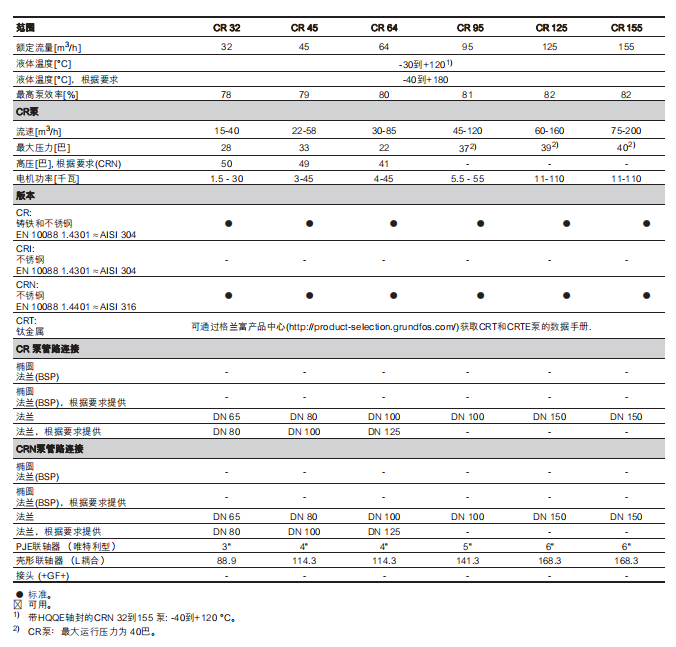

The CR pump is available in various material versions, depending on the liquid being pumped.
