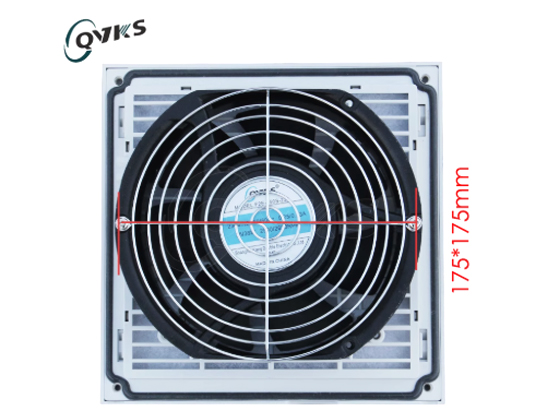

Cabinet fan FB9805.230 65W
/
Shanghai Kangshuang Electrical Co., Ltd.
, China
Send inquiry
Contact supplier
QVKS Kangshuang 220V Cooling Fan, Electrical Cabinet Fan, Distribution Box Fan
Model:
FB9805-230
Order Number:
FB9805-230: 150S-230 / 150B-230 / 220B-230
Rated Operating Voltage (Volts/Hz):
FB9805-230: 230/50/60
Airflow, Free Blowing:
FB9805-230: 190/220 m³/h
Airflow, With Outlet Filter:
FB9805-230: 1x FB9805: 170/205 m³/h
Axial Fan:
Automatic Shielded Pole Motor
Rated Current (Amps):
FB9805-230: 0.25 / 0.25 / 0.45
Power (Watts):
FB9805-230: 36 / 36 / 65
Noise Level (dB):
58/65
Operating Temperature Range:
-10℃ to +55℃
Outlet Filter Model:
FB9805 (RAL 7032 / RAL 7035)
Note:
Standard PA66 plastic filter cover, special voltage or other filters can be inquired by calling our company
Product Description
Technical Parameter

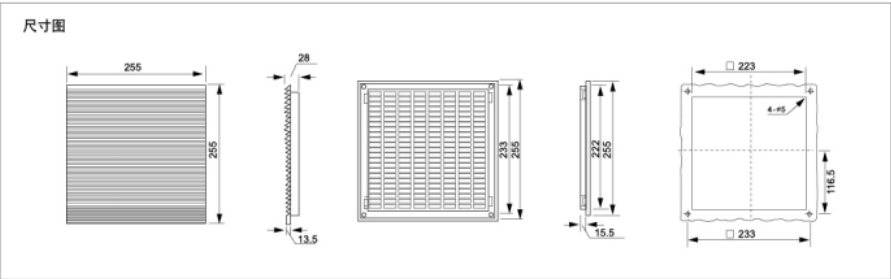

Technical Drawing
