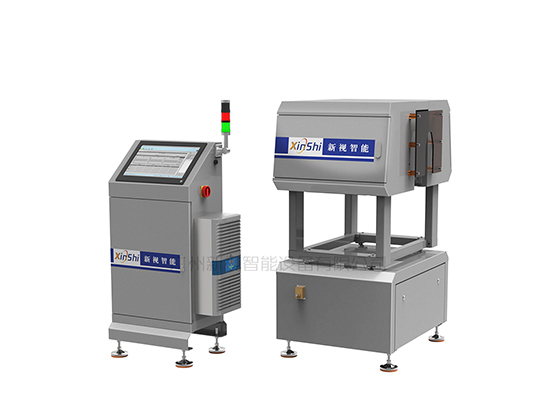

- The cap level detection machine is a 360° comprehensive inspection device for cap and liquid level, designed for high-speed filling production lines to ensure cap quality. Its modular design is suitable for various caps such as plastic caps, metal caps, and screw caps. The machine uses proprietary foam compensation technology to improve detection accuracy.
- It features a strong detection range, capable of efficiently identifying PE/PET plastic bottles, milk bottles, and beer bottles, with an automatic rejection device for non-conforming products.
- Equipped with a user-friendly interface, it supports multiple product information communication methods for easy upper computer communication.
- The machine is made of stainless steel 304 and has an attractive appearance, making it easy to install and with strong environmental adaptability.
Home/Laboratory Equipment/Physical Inspection/Cap Level Detection Machine---XS-FBJ-4A/
Guangzhou Xinshi Intelligent Equipment Co., Ltd.
GuangDong-GuangZhou, ChinaEquipment model
XS-FBJ-4A
Detection Range
40mm~120mm
Capacity Range
100ml-2500ml
Vessel Height Range
80mm~350mm
Maximum Speed (max)
≥72000 bottles/hour
Inspection Item :
Precision A / Precision B
Liquid Level Tolerance
±2mm / ±1mm
Rejection Rate
≥99.9% / ≥99.1%
Misdetection Rate
≤0.1% / ≤0.3%
Adjustable Size:
±100mm
Auxiliary Organization:
Rejection Device
Usage Environment:
0°C~40°C (within range), relative humidity: <95% (40°C)
Product Description
Technical Parameter
