Techik Instrument (Shanghai) Co., Ltd.
ShangHai, ChinaCombo Metal Detector and Checkweigher
Short Description:

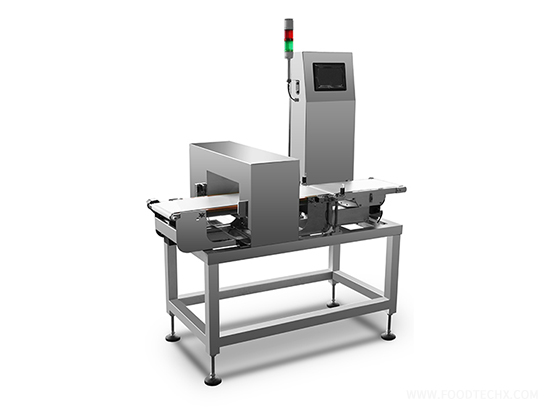

Metal detector and checkweigher combo machine, metal detection and weight check can be achieved in one machine at the same time. Widely used for food, agricultural products, medicine, consumable and other industries.
*Product Introduction:
Metal detector and checkweigher combo machine, metal detection and weight check can be achieved in one machine at the same time. Widely used for food, agricultural products, medicine, consumable and other industries.
*Advantages:
1.Compact design, saving space and installation cost
2.Metal detector and checkweigher is perfectly connected in one frame, to install the machine in workshop conveniently and effectively
*Note:
1.The technical parameter above namely is the result of accuracy by checking only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
2.The detecting speed above will be affected according to the product size to be checked.
3.Requirements for different sizes by customers can be fulfilled.
MODEL
IMC-230L
Detecting Range
20~2000g
Scale Interval
0.1g
Accuracy(3σ)
±0.2g
Detecting Speed (Max Speed)
155pcs/min
Maximum Belt Speed
70m/min
Weighed Product Size
:
Width
220mm
Length
350mm
Weighed Platform Size
:
Width
230mm
Length
450mm
Sensitivity
:
Fe
Φ0.7mm
SUS
Φ1.5mm
Product Storage Quantity
100 kinds
Segments Number of Sorting
3
Rejecter
Rejecter optional
Power Supply
AC220V(Optional)
Degree of Protection
IP54/IP65
Main Material
Mirror Polished/Sand blasted
- Combo Machine for meat
- Combo Machine used in Glico Wings (1)
- Combo Machine used in Glico Wings
- Combo Machine used in Glico Wings
