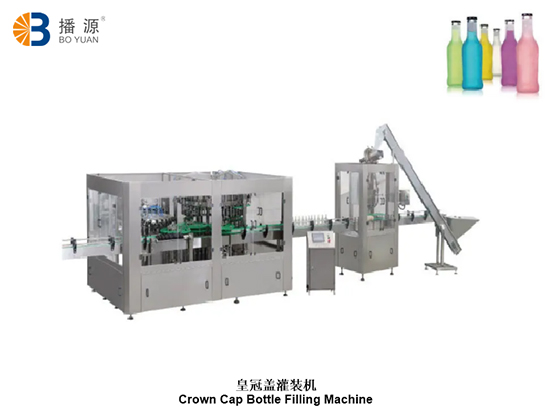

Crown Cap Bottle Filling Machine

1. The bottle flushing machine adopts high strength spring type bottle clamp to ensure that the bottle can be smoothly turned over. The bottle flushing nozzle is a plum shaped structure, which can be flushed to every corner of the wall and bottom of the bottle, so that the flushing is cleaner.

2. The whole machine adopts the bottle-bottom supporting conveying structure, which makes the whole line run more stable and reliable.

3. The filling machine adopts bearing support  structure to make the machine run more smoothly. Filling adopts the bottle lifting micro negative pressure gravity filling principle, which makes filling fast and accurate. The machine has the characteristics of no bottle no filling. To realize filling of different sizes bottles, just slightly adjust the height of several parts and change the modify parts.

4. The cap collator adopts horizontal rotary pneumatic cap collator. It has the function of not damaging the cap surface and automatically filling the cap when the cap is run out in the hopper.

5. The whole machine adopts centralized lubrication system, which makes equipment maintenance more convenient and fast.

6. The machine adopts advanced man-machine interface operation, PLC control, frequency conversion stepless speed regulation and other automatic control technology. With no bottle no open valve, machine stop when cap chute lack of cap and other functions.Parts in contact with the material are made of 304L high quality stainless steel material, fully meet the requirements of food hygiene. The main electrical appliances and pneumatic components are all made by internationally renowned manufacturers.

7. The whole machine adopts the bottle body clamping conveying structure, which makes it more convenient and fast to change the bottle type during production, repair or maintenance. To realize production of different bottle types, user only need to replace the corresponding adjustable parts.
