The equipment design and manufacturing meet the requirements of the production line process and layout, with a beautiful appearance and good manufacturing craftsmanship.
-
Low electricity and water consumption, easy operation, adjustment, and maintenance.
-
The machine has good self-protection functions, such as overload protection.
-
It has functions for detecting the absence of tape and cartons.
-
The storage mechanism can hold about 50 unformed cartons at a time (depending on the thickness of the carton) and can be replenished at any time.
-
When changing specifications, the machine's suction box, delivery box, material bin, output box width, and height are all manually adjusted.

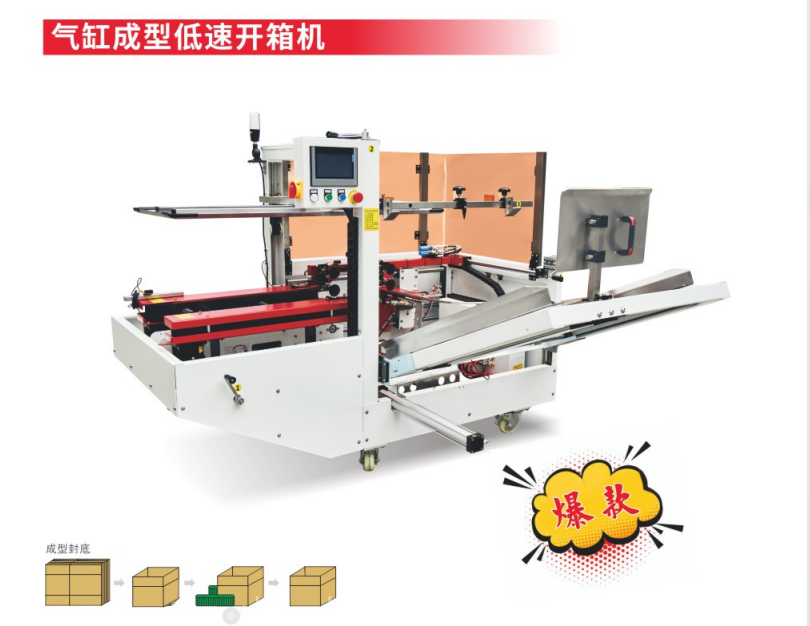

Home/Packaging equipment/Cylinder forming low-speed case opener---SDW-K20BX/
Shenzhen Xiaohui Packaging Technology Co., Ltd.
GuangDong-ShenZhen, ChinaPower Supply:
220V 50Hz 0.4KW
Air Supply:
0.5-0.6 Mpa
Air Consumption:
450NL/min
Machine Dimensions:
L2035 * W1901 * H1545mm
Suitable Carton Size:
L280-500 * W160-400 * H150-400mm
Tape Width:
48-72mm
Formation Speed:
8-10 boxes/minute (depending on the carton size)
Box Opening Method:
Cylinder forming
Table Height:
650mm
