GENIXGREEN
Dongguan , China
Model
LFF-12100VW
Nominal Voltage
12.8V
Nominal Capacity @25℃
100 AH
Nominal Energy @25℃
1280WH
Battery Cell Type
Prismatic 100Ah
Configuration ("S"P)
4S1P
Max. Continuous Charge Current @25℃
100A
Max. Pulse Charge Current @25℃, 10s
120A
Max. Continuous Discharge Current @25℃
100A
Max. Pulse Discharge Current @25℃, 10s
120A
DC Resistance
≤10mΩ
Full Charged Voltage
14.6V
Discharge Cut-off Voltage
10V
Operate Temperature Range
Charge: 0℃~45℃; Discharge: -20℃~65℃
Humidity (non-condensing)
Max. 95%
Dimension (mm)
327*172*218mm
Weight (KG)
13.5KG
Terminal Type
Screw terminal

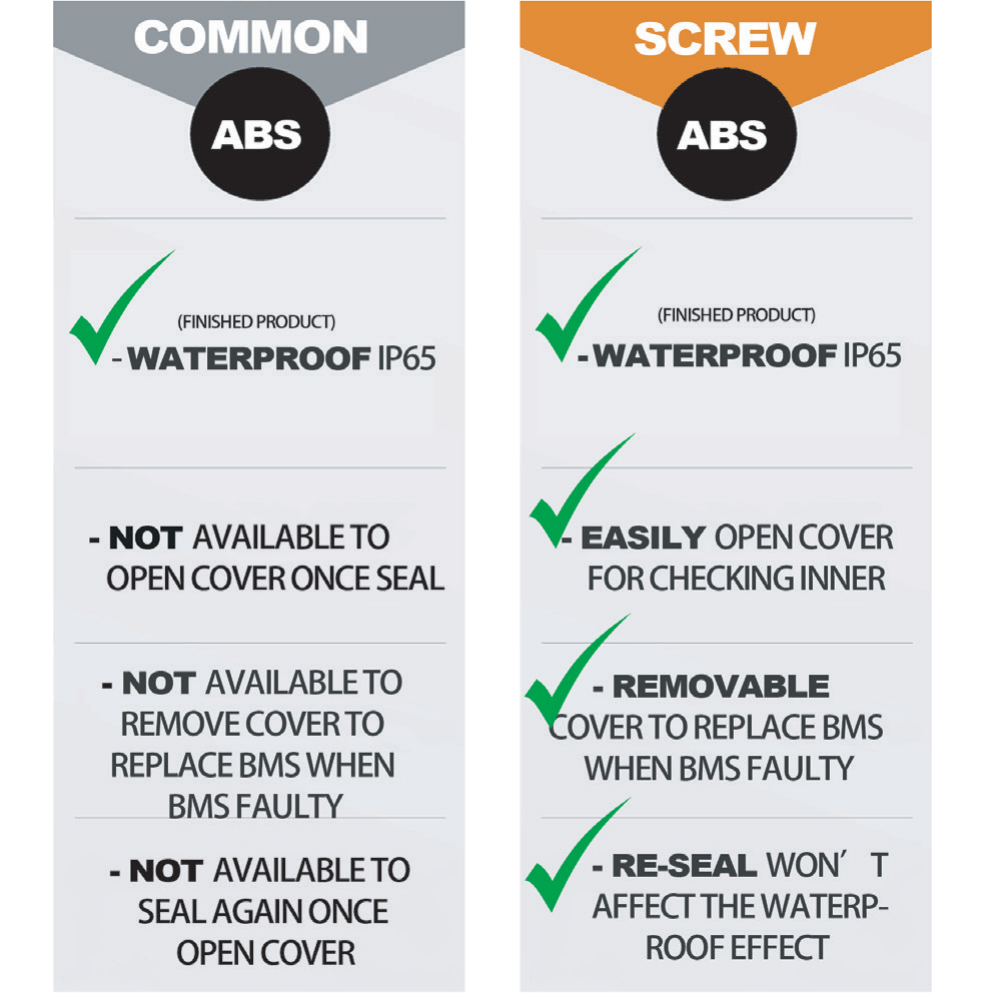

Cover Sealing type
Screw sealing
Cycle life
＞3000 cycles at 25℃, 80% DOD, 1C charge/discharge
Battery cell
New grade A cells
Series and Parallels Function
Available to configure 24V, 36V, 48V via series/parallel connection
