Product details:

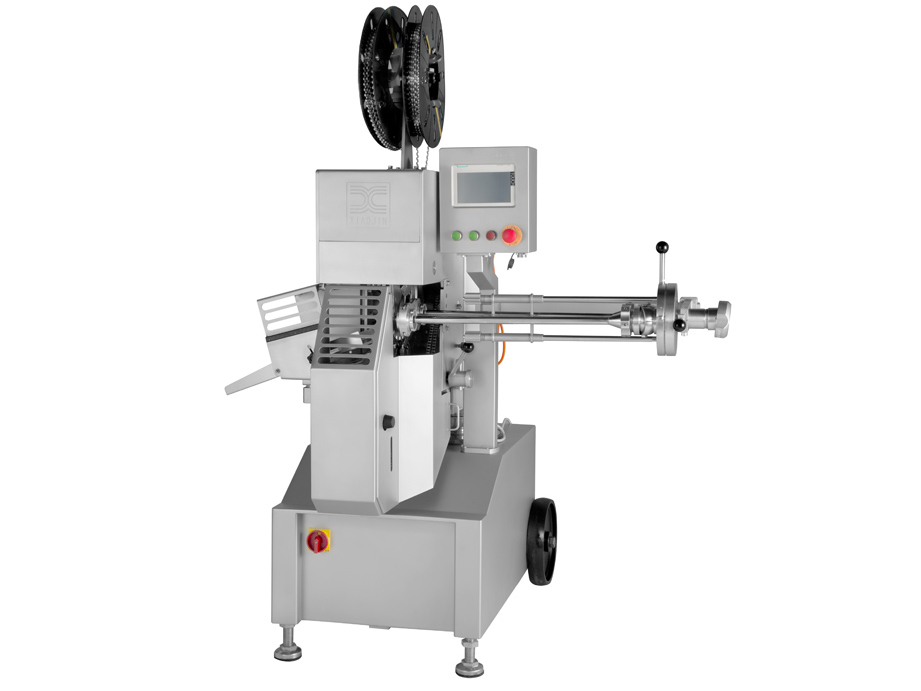

DKJC series Great Wall double card punching machine is mainly used for the sealing and punching process of ham

sausage and the sealing and tying process of other soft packaging items. It is carefully developed by our company based

on many years of practical experience in the production of buckles and punching machines and combined with industry

needs. It has the characteristics of accurate buckle feeding, tight sealing, beautiful buckle shape, firm and reliable, simple

and reliable operation, low failure rate, and convenient maintenance. It is an ideal equipment for producing high-end ham

sausage.

Equipment structure:

controlled by servo motor, adjustable speed. Mainly composed of machine base, machine body, conveying device, air

system, operating device, chuck holder, filling tube holder, mobile rack, etc.

Working principle:

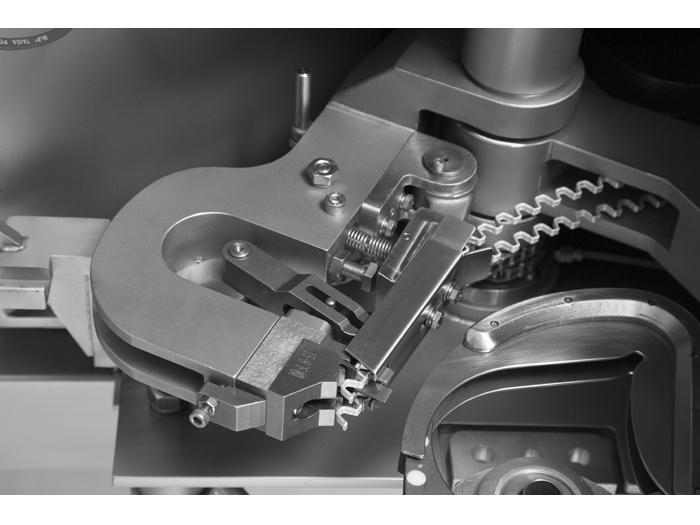

This machine is driven by servo motor, and various cams are used to complete the punching function. It has a simple and

firm structure, light and flexible operation, and has cutting and counting functions. It has stable and reliable performance.

Product advantages and features:

1. The whole machine is made of high-quality SUS304 stainless steel and has undergone special surface treatment

(completely consistent with the surface treatment of imported equipment, soft and beautiful color, easy to clean).

2. Key components are made of imported materials through the processing center to improve the manufacturing accuracy

of the machine.

3. Driven by servo motor, the action is accurate and reliable, the stability is good, and the noise is low.

4. The Siemens PLC programmable control system is used to set parameters, and the button switch is operated, which is

convenient. The position of the touch control electrical appliances is reasonably arranged, and the moisture-proof

performance is enhanced.

5. It has automatic cutting function (cutting or not cutting can be selected), cutter count: 0~9 can be selected at will, and

tightening and stretching can be freely adjusted.

6. The punching speed is adjustable from 1 to 9 levels, up to 100t times/min, with a cleverly designed punching buffer

mechanism that does not require maintenance, and different models of Great Wall aluminum cards can be selected, with

tight buckle type and beautiful appearance.

7. The fullness of the sausage can be accurately adjusted, and the tightness of the hug can be adjusted.

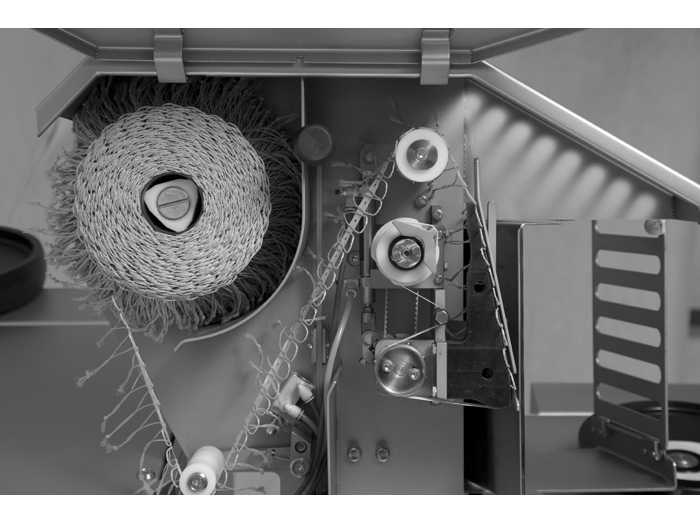

8. This machine can also be equipped with a hanging rope buckle function to improve product production efficiency.

9. When used in conjunction with a quantitative filling machine, it can automatically complete single or continuous actions

of filling, sealing, and cutting. It is an ideal equipment to ensure product quality, realize automated production, and

improve production efficiency. It is also an alternative to imported equipment.

Optional content:

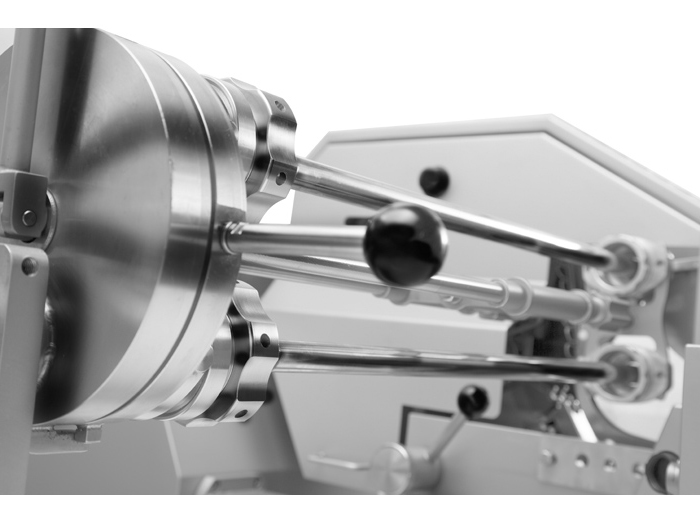

Filling tube selection

1. Parallel double tube device

2. Single filling tube device

Discharging conveying selection

1. Inclined disc conveying device

2. Electric conveying device

Rope selection

1. Automatic rope hanging device
