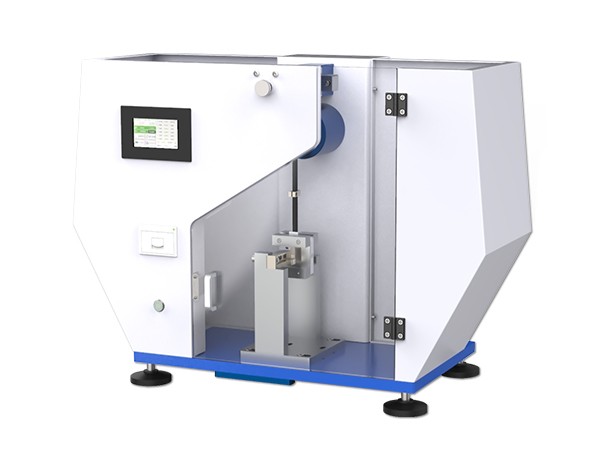

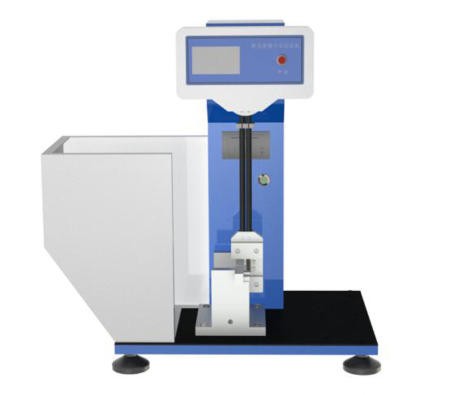

I. Product Models: HT-1043-5D HT-1043-25D HT-1043-50D

II. Application Areas:

This series of digital display impact testing machines is mainly used for determining the impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, fiberglass, ceramics, cast stone, and electrical insulation materials. It is an ideal testing equipment for the chemical industry, research institutions, universities, and quality inspection departments.

III. Product Features:

1. This series of impact testing machines is an intelligent digital display impact testing machine developed and manufactured using microcomputer technology. It can automatically correct for energy losses caused by friction and wind resistance, eliminating the need for numerical charts that correct for energy loss due to resistance. (The detection of the remaining energy of the pendulum after sample fracture and the correction for energy loss are completed in one operation during the impact process).

2. All impact testing machines in this series use electronic displays for the test results, making the readings more intuitive and improving the accuracy and precision of the impact testing machine.

3. Employs rotary encoder circular grating angle measurement technology, offering advantages such as high accuracy, good stability, and a large measurement range. Digital display shows breaking energy, impact strength, pre-lift angle, rise angle, average value, and automatic energy loss correction.

4. The swing arm is made of a new type of carbon fiber material, which is stronger than steel and lighter than aluminum.

IV. Standards Compliance:

Main technical parameters fully comply with the provisions of ISO 179-2000, GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, and GB/T18743-2002 standards.

Parameter:
