Product Brief
(1) A palletizer automatically stacks cartons, film-wrapped packages, and other independently packaged products in a certain arrangement on a pallet in multiple layers, then pushes them to a designated position for forklift transportation to the warehouse. It can save the labor of several people (the number of people is calculated based on the output of independent products), ensure the stable production of the factory production line, improve the production efficiency of the production line, and reduce the production cost of the factory.
(2) This equipment is controlled by imported brand (SIEMENS) PLC + touch screen (Schneider), realizing intelligent operation and management, which is simple and easy to master, and various grouping forms can be adjusted conveniently. It can greatly reduce labor and labor intensity, and improve the production line management level of enterprises. It is designed with the concept of high speed, stability and space saving. It adopts a separate pallet, which is faster and more space-saving. One machine has multiple uses, can be adjusted quickly, and can be used for palletizing products of various specifications.
(3) Scope of application: Palletizing of cartons, transfer boxes, and heat-shrinkable film-packaged products
二、Process Flow
This machine can realize the functions of automatic feeding, automatic alignment, automatic lifting and arranging layers, automatic pallet supply, and automatic palletizing.
During production, cartons/heat-shrink film packages are conveyed via a conveyor belt. When passing through the turning device, they are turned as necessary according to the counting program for automatic alignment. After a layer is aligned, the layer-pushing device pushes the arranged layer onto the lifting platform. Then, the arranged layer rises to a specific stacking position along with the lifting platform and is released, thus completing the stacking of one layer. After stacking one layer, the lifting platform returns to its original state, and the stacking operation for the second layer is repeated. Once the stacking is completed, the entire stack is automatically output.

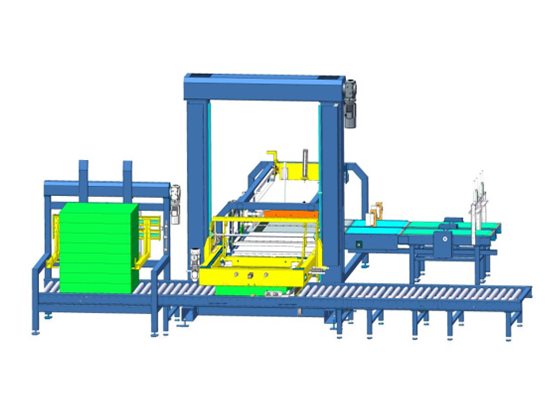

HTMD fully automatic palletizing machine
(1) Product Description
(IV) Main Structure and Functions:
(1) Product Input Device
(2) Automatic Palletizing Device
(3) Automatic Pallet Supply Section
(4) Safety Guardrail Device with Multiple Safety Protection Functions
Materials:
(V) Structural Advantages of This Machine:
(VI) Installation Site Requirements

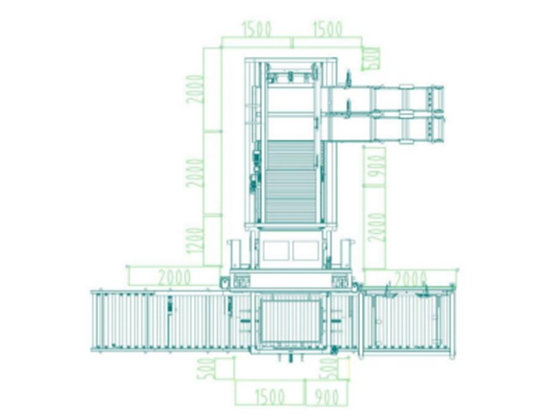

Installation Space Requirements:

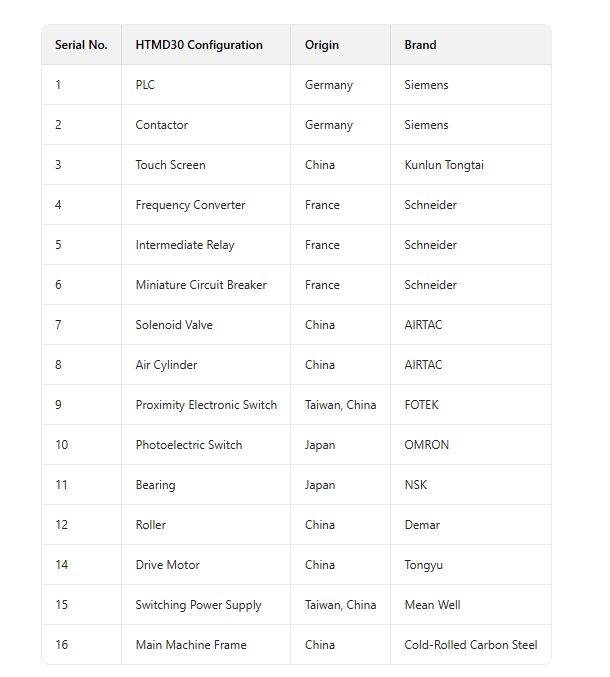

(VII) Electrical Configuration
