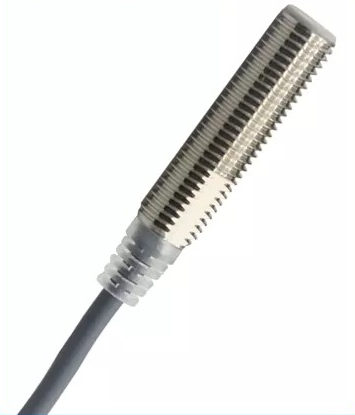

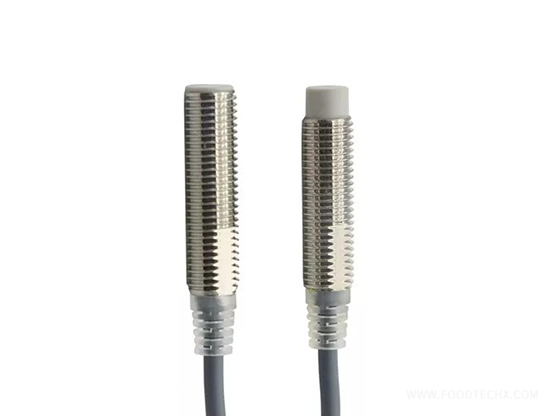

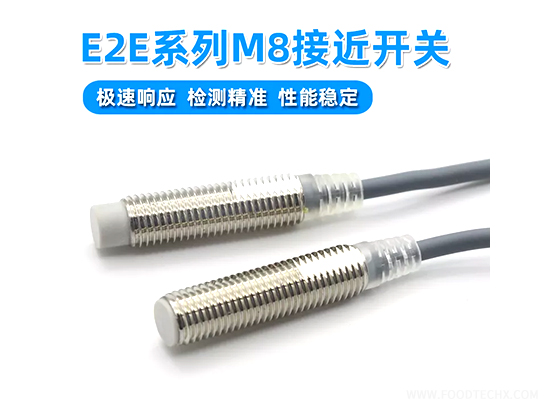

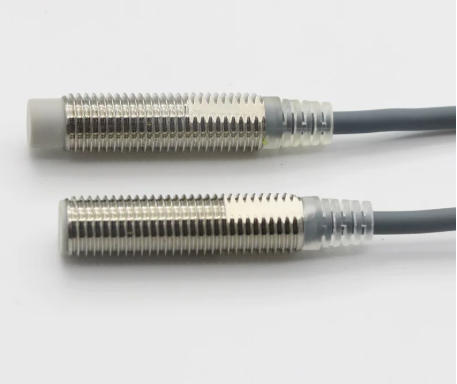

M8E2 Series
Proximity Switches

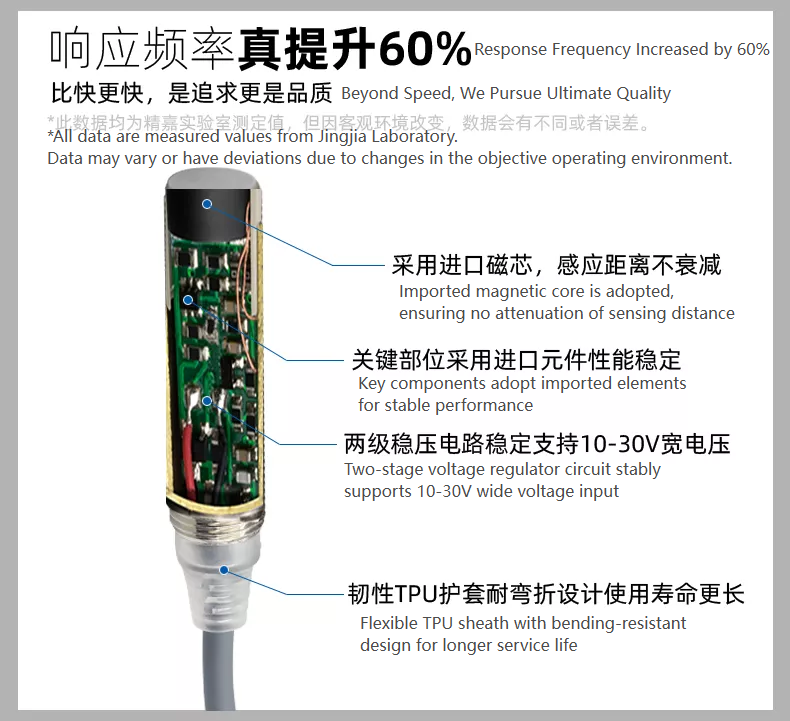

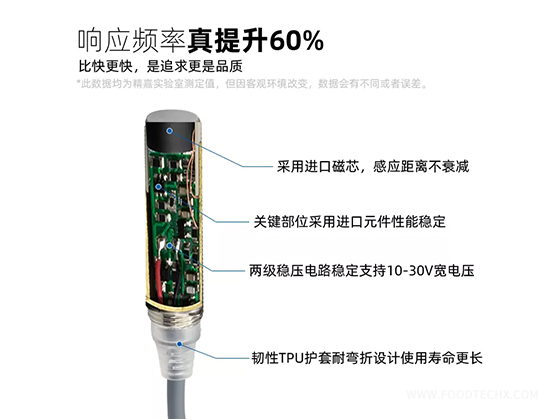

•  Response frequency increased by 60%.
•  Operating temperature range: -25°C to +70°C; IP67 rating; waterproof and dustproof.

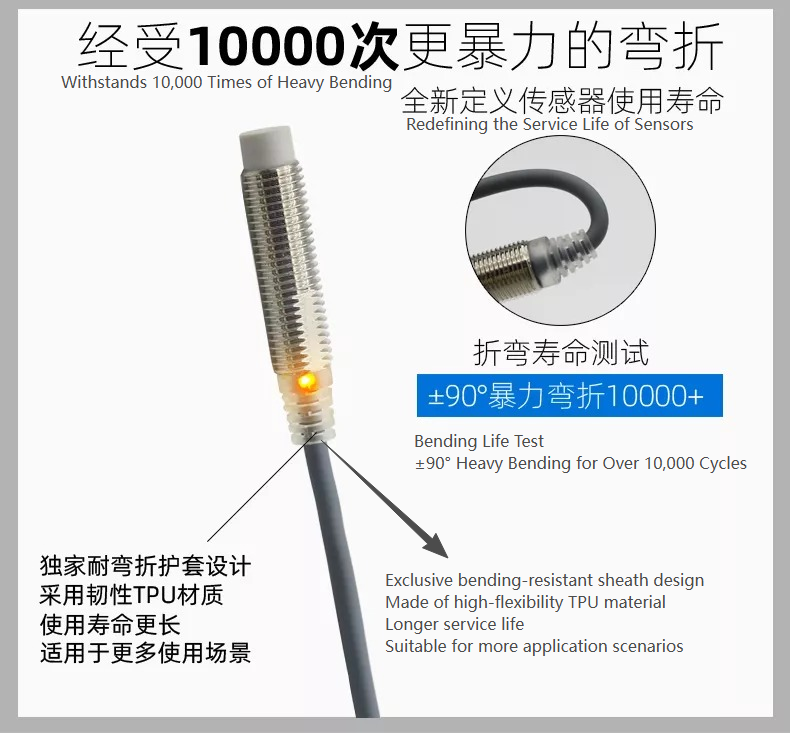

•  High-quality wiring featuring pure copper conductors for excellent electrical conductivity, and a matte, abrasion-resistant jacket that withstands repeated bending.

What is the Working Principle of E2E Proximity Switch?

1. A high-frequency oscillator inside the proximity switch drives the coil to generate a high-frequency magnetic field.
2. When the measured object approaches the high-frequency magnetic field, eddy currents are generated on the surface of the object, which in turn induce a secondary magnetic field.
3. The oscillator is affected by the secondary magnetic field induced by the eddy current and stops oscillating.
4. The control circuit outputs ON/OFF signals based on the presence or absence of oscillation.
