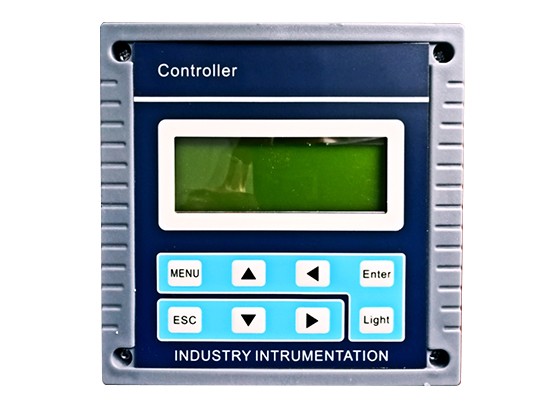

Home/Water Treatment Equipment/Spare parts/EC-5100--- Chinese Online Acid Concentration Meter/
Huzhou Xianhe Instrument Co., Ltd.
, ChinaModel
EC-5100
Range
0-10% HCl; 0-10% H₂SO₄; 0-15% HNO₃; 0-10% NaOH; 0-25% NaCl; 0-10% Na₂CO₃; Temperature: 0～99.9℃
Accuracy
Concentration: ±2.0%; Temperature: ±0.3℃
Medium Temperature
0～99℃
Matching Electrode:
30cm-1
Matching Electrode
Dissolved Oxygen Sensor
Display Mode
Dot Matrix LCD
Clock Accuracy:
±1 minute/month
Data Storage:
1 month (1 data point/5 minutes)
Current Output:
Photoelectrically Isolated 4～20 mA
Control Output:
ON/OFF High-Limit and Low-Limit Relays
Communication Output:
RS-485
Protection Class:
IP65
Power Supply:
AC 220V±10% 50/60Hz
Operating Conditions:
Ambient Temperature: 0～50℃; Relative Humidity: ≤85%
Dimensions
96×96×130 mm (Height × Width × Depth)
Cutout Dimension:
92×92 mm
Installation Method:
Wall Mount / Panel Mount
Product Description
Technical Parameter
