Product name: Double glass reactor Product patent: polytetrafluoroethylene kettle cover Company name: Nanjing Cole Biotechnology Co., LTD.

Support customization: Yes

Product origin: Nanjing

Product Features: stable performance, clear display control and data plane, simple and easy to operate, safe and stable



Product introduction

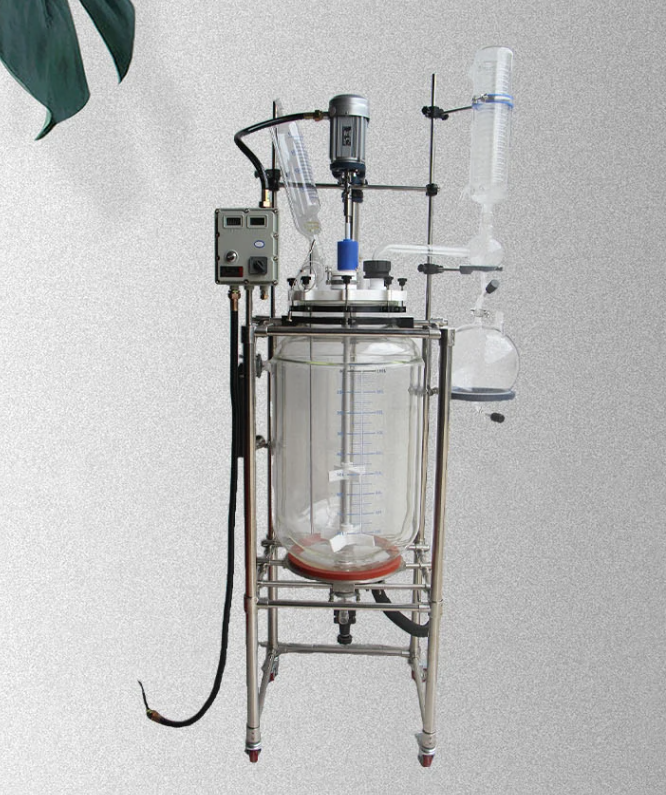

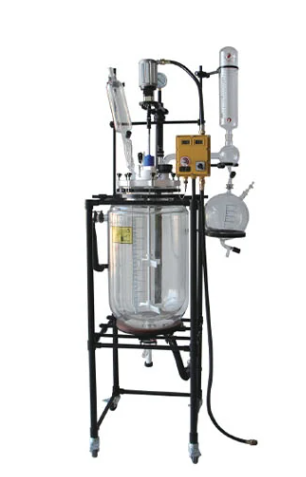

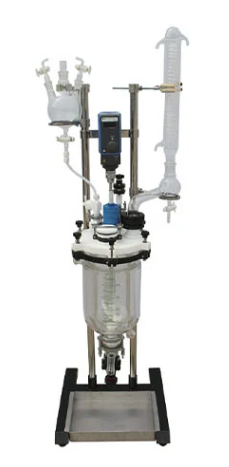

The inner container of the double-layer glass reactor places the reaction material, and can be vacuumed and stirred with speed regulation. The interlayer can introduce high and low temperature thermal oil to heat up and cool the material. Used in chemistry, fine chemical industry, biopharmaceutical new material synthesis experiment, pilot test and production. The product can be used with high and low temperature completely closed circulator, circulating water multi-purpose vacuum pump, diaphragm vacuum pump, low temperature coolant circulation pump to form a system device, mainly used for material synthesis, distillation, concentration and other tests.



The three-layer glass reactor body has two layers of jacket, the inner layer of jacket through a certain temperature of circulating liquid to adjust the temperature of the material in the tank, the outer layer of the vacuum pump pumped to the vacuum state, to achieve vacuum insulation function.

● High borosilicate glass material, excellent physical and chemical properties.

● It can be used in high temperature (200℃) to low temperature (-120℃).

● It can work under normal pressure and vacuum conditions, and the vacuum degree can reach 0.095MPa under static state.

● Digital display mixing speed, frequency conversion, constant speed mixing system, stable work.

●PTFE mixing paddle (mixing blade).

● Anti-corrosion discharge valve without dead chamber design.

● Teflon seal, wear-resistant and corrosion-resistant to ensure high vacuum.

● Material temperature digital display.



10 reasons to use a reactor:

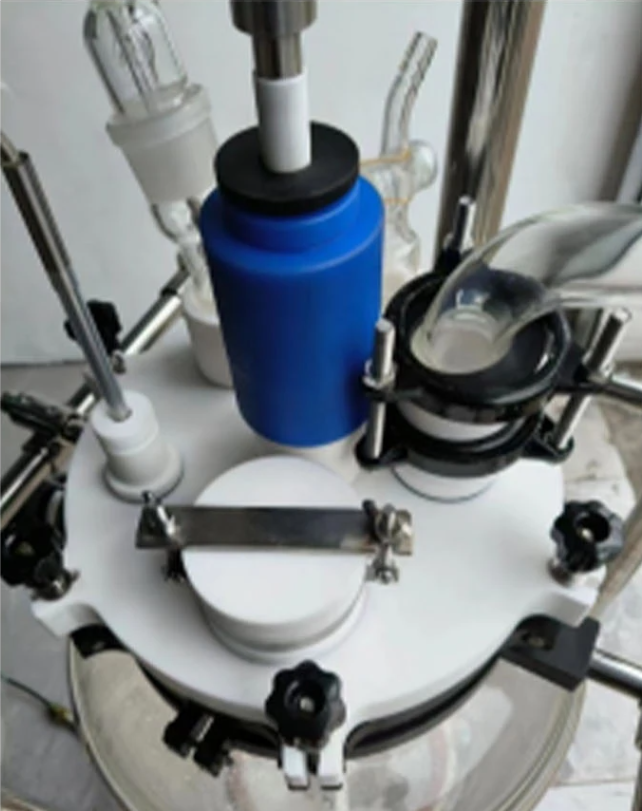

1. Unique PTFE kettle cover;

2, hose fast connector;

3, buffer hose;

4, mixing rod alignment is simple;

5. Patent mixing seal (Patent No. :ZL2019 2 1129878.X);

6, no dead end valve design;

7, standard kettle body;

8, national standard explosion-proof motor;

9, national standard explosion-proof inverter;

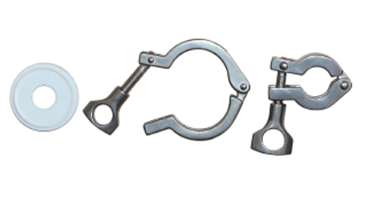

10, unique mouth flange clamp distillation, reflux, rectification reactor:





The maximum operating temperature is 200℃, the minimum operating temperature is -120℃, and the temperature deviation inside and outside the reactor is allowed to be 80℃. When the reactor is heated or cooled, the temperature inside and outside the reactor should be continuously monitored, and the temperature should be gradually raised and lowered to avoid accidents. The hose manifold has two important functions: it supports the hose attached to the tank body, thus reducing the pressure on the glass circulation joint and facilitating the quick circulation joint disassembly. Provide convenience when replacing the tank body, clean and efficient discharge of heat transfer oil from the jacket, open the valve at the lower inlet to discharge heat transfer oil to other vessels.
