Hebei Jianzhi Casting Group Co., Ltd.
, ChinaCode
JZ12008
Size (BSPT):
1/4''
Size (DN):
8

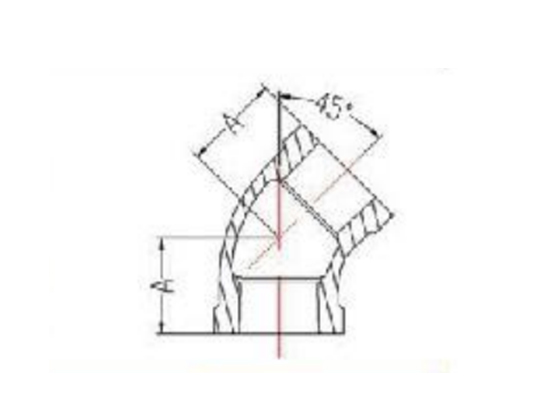

A(mm)
18
Unit Weight
:
Black (g)
46.06
Galv. (g)
47
Packing : Carton
500 pcs/ctn
Executive standard: GB/T 3287
Application field: suitable for conveying water, oil, air, gas, steam and other general pipeline connection.
Specifications: DN 15-100mm
Working pressure: 1.6MPa
Material: Malleable cast iron KTH330-08
Tensile strength:≥ 330MPa
Elongation: ≥ 8%
