Hebei Jianzhi Casting Group Co., Ltd.
, ChinaCode
JZ180R2015
Size (BSPT)
1/2'' x 3/4''
Size (DN)
15x20

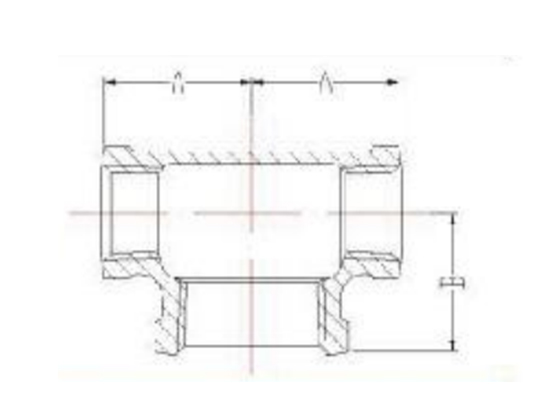

A (mm)
30
B (mm)
29
Unit Weight
:
Black (g)
163
Galv. (g)
163
Packing :Carton
120 pcs/ctn
Executive standard: GB/T 3287
Application field: suitable for conveying water, oil, air, gas, steam and other general pipeline connection.
Specifications: DN 15-100mm
Working pressure: 1.6MPa
Material: Malleable cast iron KTH330-08
Tensile strength:≥ 330MPa
Elongation: ≥ 8%
