• Control Scale: 14 to 128 points

  • (Using CC-Link remote I/O up to 256 points)

  • (FX3GA basic units: 24/40/60 points)

  • (FX3G basic units: 14/24/40/60 points)

A PLC That Allows Free Combination

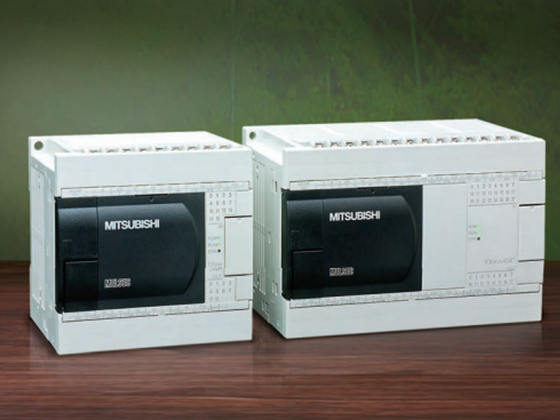

• The FX3GA is a compact PLC with simple design and basic functions of the FX3 series. It enhances internal functions and expandability, broadening its application in various fields.

• Third Generation Standard Model- High Flexibility

• Suitable for small-scale control with cost-effectiveness

• Control point count up to 128 points, using CC-Link remote I/O up to 256 points

Product Details

• High-Speed Processing

  • Basic instruction: 0.21μs/instruction

  • Application instruction: 0.5μs/instruction

• Large Capacity Memory

  • Internal program memory: 32,000 steps

  • Can use program transmission function EEPROM memory device

• Certification

  • Corresponding EN and UL/cUL certification
