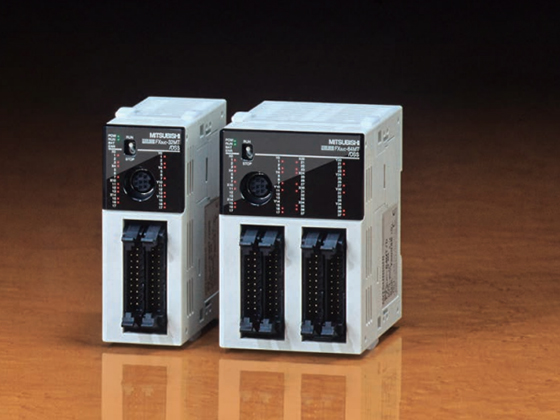

High-Performance Space-Saving Model

• The FX3UC enhances high-speed processing and positioning functions while saving space and reducing wiring. It includes a built-in DC24V power supply,  (transistor output), and can achieve network communication, data collection, and other functions according to product combinations.

• Third Generation High-Function Micro-Programmable Controller

• Space-saving and wiring-saving connectors

• Internal high-speed processing and positioning

• Ultra-compact size, control point count up to 256 points

• Using CC-Link remote I/O up to 384 points

Product Details

• High-Speed Processing

  • Basic instruction: 0.065μs/instruction

  • Application instruction: 0.642μs/instruction

• Large Capacity Memory

  • Internal program memory: 64,000 steps

  • Can use program transmission function flash memory device

• Certification

  • Corresponding EN and UL/cUL certification

  • Corresponding various safety certifications

• Control Scale: 16 to 256 points

  • (Using CC-Link remote I/O up to 384 points)

  • (Basic units: 16/32/64/96 points)
