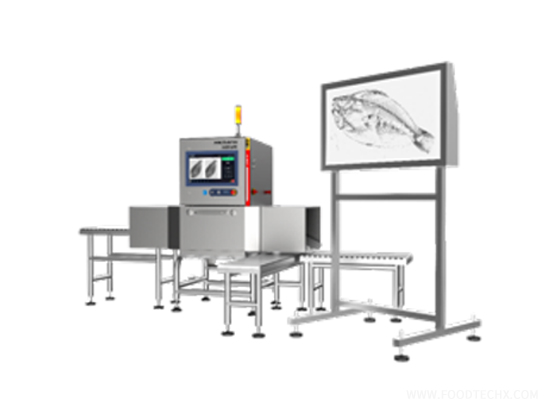

ZheJiang-HangZhou, ChinaX‑ray Intelligent Foreign Object & Defect Detection System – Fish Bone Model
Product Introduction

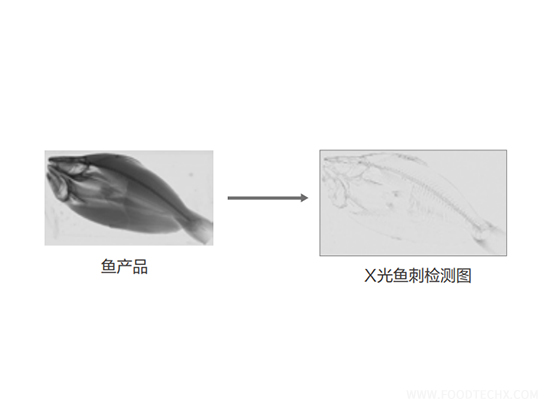

The X‑ray High‑Definition Intelligent Foreign Object & Defect Detection System utilizes X‑ray detection principles, a new Raytina image‑enhancement engine, leading AI technology, and a 0.1 mm HD detection module to capture fine details with high clarity. It significantly improves the ability to detect tiny foreign objects and defects, delivering high‑precision, highly adaptable inspection of foreign matter (fish bones, metal, glass, stones, plastic, bone, etc./micro foreign objects) and defects (counting, missing parts, etc.), providing effective technical support for enhancing production quality and efficiency.

STRUCTURE
:
Order Model
Fish Bone Model
Tunnel Opening Width
400mm
Tunnel Opening Height
160mm
Overall Dimensions
1964 H × 1588 L × 1066 W mm (including signal light height)
Overall Weight
360 kg
Housing Material
Stainless steel (SUS 316L)
CONVEYING SYSTERM
:
Conveyor Belt Material
Food‑grade PU
Conveyor Belt Width
418 mm
Conveyor Belt Height from Ground
800±50mm
Conveyor Belt Speed
≤ 60 m/min
Max Load
10kg
X-RAY SYSTERM
:
X-ray Tube Voltage
30–80 kV
X-ray Tube Current
4000-8000μA
X-ray Power
350 W, beryllium window
Detector
0.1 mm multi‑exposure
DETECTION SENSITIVITY
:
Stainless Steel Ball (Φ)
0.2mm
Stainless Steel Wire
0.2*2mm
Glass Ball (Φ)
0.8mm
Ceramic Ball (Φ)
0.8mm
Algorithm Support
Foreign Object/Defect Detection
COMPLETE MACHINE CONFIGURATION:
Ingress Protection RatingTransmission Part: IP66; Other Areas: IP66
Tested Product FormPackaged products, bulk products
Rejection MethodAutomatic rejection (optional rejection mechanisms available)
Alarm ModeSound & light alarm
Display Mode21.5‑inch touch screen, 1920 × 1080 resolution > 43 items/inch display, 4K resolution
Cooling MethodIndustrial air conditioner, constant temperature control / temperature adjustable via panel
Radiation Protection4 layers of protective lead curtains at each inlet and outlet
Radiation Safety≤1μSv/h
Power SupplyAC 220 V, 50/60 Hz, 1.8 kW
Operating Temperature-10~40℃
Operating Humidity30~90%RH, non-condensing
InterfacesEthernet, USB; Support MES docking
