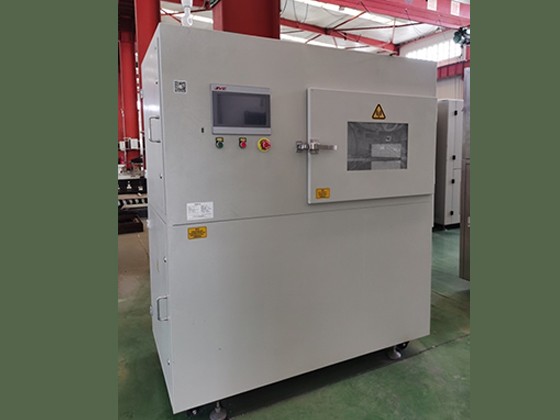

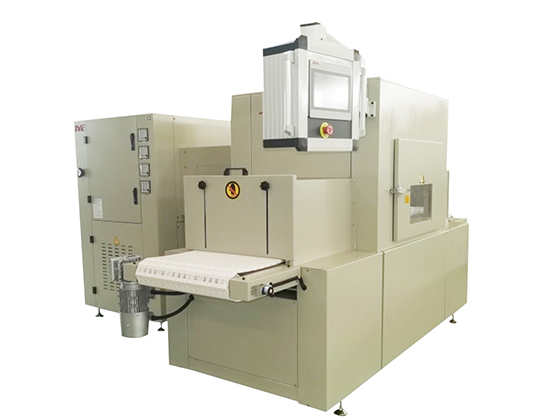

RF test equipment for the laboratory of university and institute
Home/Food Processing Equipment/Fixed RF test equipment/
Hebei Huas Jiyuan High Frequency Equipment Co.,Ltd
HeBei-LangFang, ChinaModel
GJG-6B-27II-JY
External Dimensions
1500*850*1700mm
Electrode Plate Size
600*400mm
Electrode Plate Travel
50-300mm
Power Supply
Three-phase, 380V 50Hz
RF Input Capacity
10kVA
RF Oscillation Power
6kW
Rectification Method
Three-phase full-wave rectification
Cooling Method
Forced air cooling
RF Oscillation Frequency
27.12MHz
Power Regulation Method
Automatic
Temperature Measurement Method
Optical fiber temperature measurement
Temperature Measurement Range
-30~100°C or -40~200°C
Temperature Measurement Accuracy
±0.5°C
Electric Heating Power
2-4kW two levels
Control Method
PLC + Touch Screen
Data Export
Supports USB2.0 interface, exports to generate EXCEL format files
