Weihai Kunke Flow Instrument Co.,Ltd.
ShanDong-WeiHai, ChinaProduct Name:

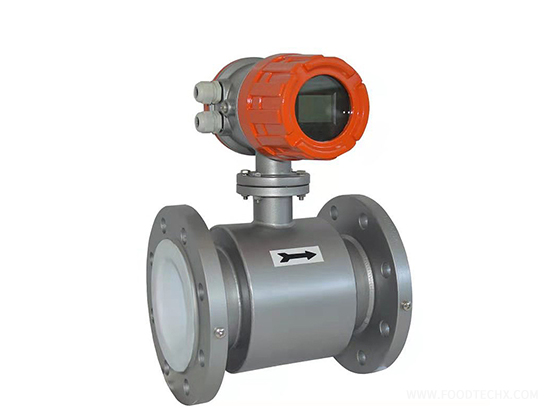

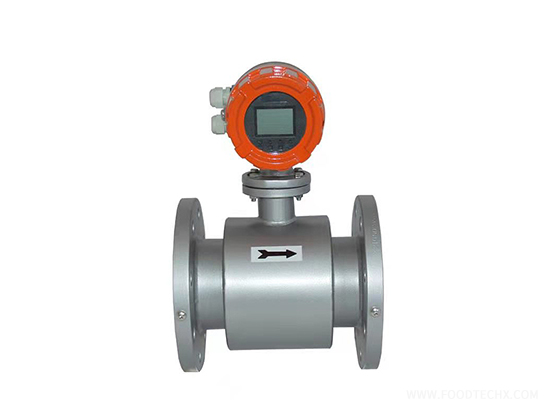

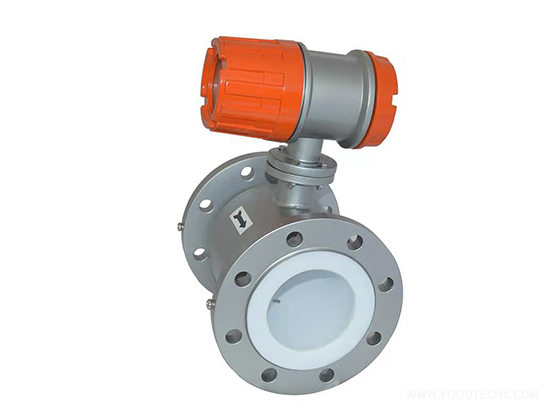

intelligent electromagnetic flowmeter
product model:
kld-dn15 ~ DN1200
measuring medium:
conductive liquid
connection mode:
flange connection, simple plug-in
measurement accuracy:
± 0.5% R, ± 1%
nominal pressure:
dn15-dn300, PN < 1.6Mpa; DN350-DN800,PN<1.0MPa; Above dn900, PN < 0.6MPa;
structural form:
one type: IP65, split type: IP65, IP68
lining material:
neoprene, polytetrafluoroethylene, polyethylene
power supply mode:
24V power supply or 220V power supply, 3.6V lithium battery power supply
explosion proof grade:
intrinsically safe Exd Ⅱ IA ct2-t5 flameproof Exd Ⅱ ct2-t5
transmission distance:
two wire system 4-20mA standard current output: ≤ 1500m; 485 output and Hart output: ≤ 1200m
MEDIUMConductive liquids and slurries, etc.
ACCURACY+0.5%
MEASUREMENT RANGE0.06~18000m3/h
DISPLAY CONTENTInstantaneous flow rate, instantaneous flow rate, cumulative flow rate.
DIAMETERDN15~DN3000
CONNECTION TYPEFlange connection, split or plug-in
POWER SUPPLY24VDC power supply, 220VAC power supply, battery power supply
OUTPUT SIGNAL4~20mA, 485 communication, etc.
- MULTIPLE TYPESBUY ON DEMAND
- MULTIPLE TYPESBUY ON DEMAND
- MULTIPLE TYPESBUY ON DEMAND
- MULTIPLE TYPESBUY ON DEMAND
- MULTIPLE TYPESBUY ON DEMAND
- MULTIPLE TYPESBUY ON DEMAND
Product Description
Technical Parameter
Configuration List
Technical Drawing
