Zhongshan Dayuan Intelligent Manufacturing Co., LTD
, ChinaProduct Introduction

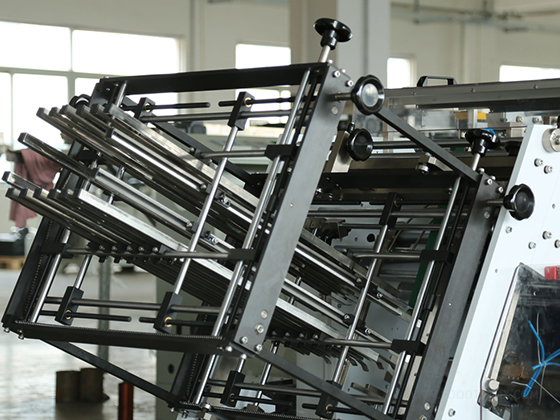

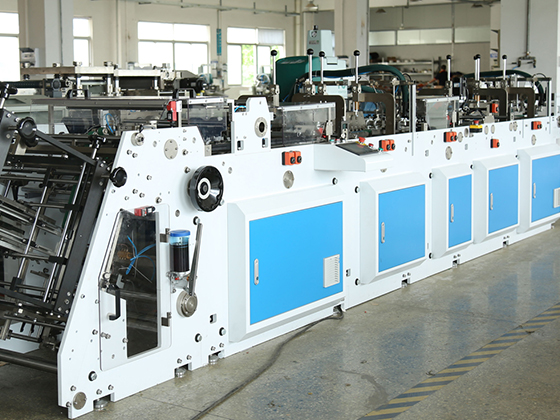

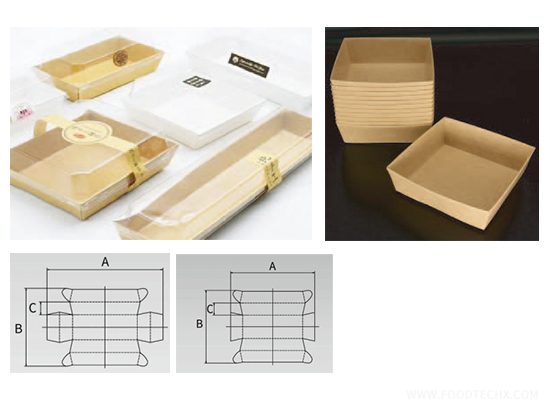

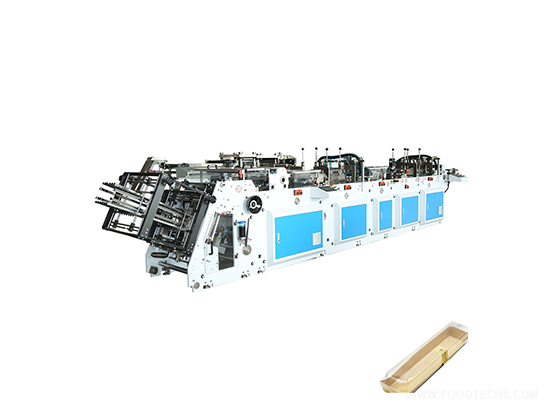

The Dayuan flanged carton forming machine is designed and manufactured in accordance with European industrial standards and has obtained CE certification. With high quality and efficiency, it is an ideal choice for producing sandwich boxes, cake trays, pastry trays and salad boxes.
Main Configuration
- Hot Melt Adhesive System
- Cold Adhesive System
- Flanging Device
- Forming Device
- Mould
Model Specifications
表格
| Item | LS-800 | LS1000/2-A | LD800 |
|---|---|---|---|
| Paper Length (L) | 200-500mm | 200-500mm | 200-450mm |
| Paper Width (B) | 200-680mm | 200-350mm | 200-500mm |
| Flange Height (H) | ≤50mm | ≤50mm | ≤50mm |
| Box Taper | 5°-40° | 5°-40° | 5°-40° |
Technical Parameters
- Voltage: 380V/50Hz 3P+N
- Total Power: 14KW
- Production Speed: 180 pieces per minute
- Air Pressure: 0.6Mpa (dry and clean air)
- Materials: 200-600gsm cardboard; corrugated paper not exceeding 1.5mm
