Guangzhou Dapuson Intelligent Equipment Co.,Ltd.

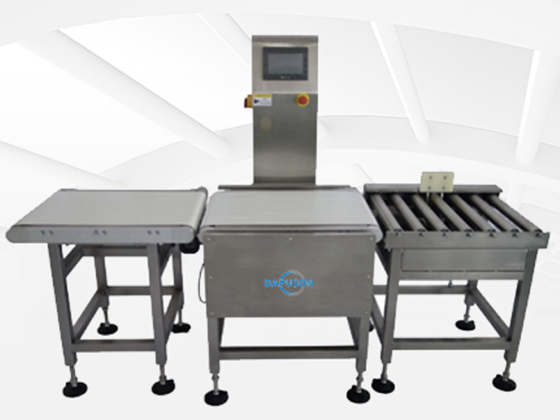

GuangDong-GuangZhou, ChinaThe DPS-FCI-1W full box inspection machine is an automatic online detection device used to check the integrity of packaging after products such as food, beverages, and beer are packed into boxes. It can effectively prevent full boxes from having missing items or bottles, automatically remove defective boxes, and record the number of both intact and defective boxes.
Technical Features:
- Stores up to 100 product parameters for easy and rapid production switching;
- Core components are sourced from well-known imported brands, ensuring stable and accurate equipment operation;
- Easy to connect with existing conveyor lines, requiring minimal modifications to existing lines;
- Comprehensive data statistics functions for convenient user traceability.

Detection Capacity:
up to 6,000 boxes per hour
Belt speed:
30 to 100 meters per minute
Maximum weighing capacity:
30~80Kg
Main material:
304 stainless steel
Conveyor:
Special aluminum alloy profile, silver white
Control box:
Stainless steel brushed finish
Power supply voltage:
Three-phase AC 380V, +10/-10%, 50/60 Hz
Equipment power:
1.8kW
Compressed air:
0.5~0.8MPa, 0.5L/min ambient temperature 0ºC~45ºC
Environmental humidity:
10% to 90%, no condensation.
