Applicable Labels: Self-adhesive labels, barcodes, etc.

Applicable Products: Single or double-sided automatic labeling for objects such as round bottles, flat bottles, square bottles, oval bottles, and conical bottles.

Industries Applied: Widely used in industries such as beverages, cosmetics, food, daily chemicals, electronics, and pharmaceuticals.

Application Examples: Labeling of round mineral water bottles, flat shampoo bottles, round food cans, and square water beverage bottles.

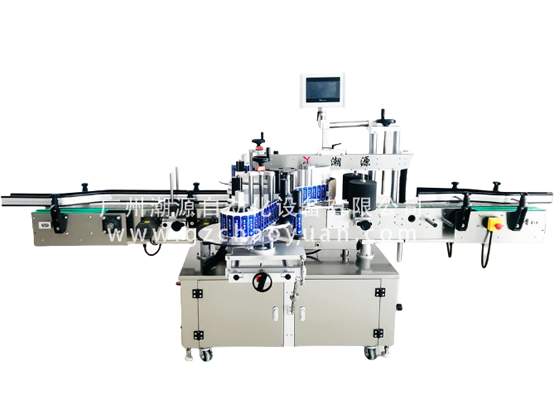

Double-sided or single-sided labeling.

Equipped with a chain-type shaping and guiding mechanism, using specially designed nylon chains for synchronized drive, precise positioning, and automatic bottle centering, significantly reducing the difficulty of worker operation or production line docking. It has low requirements for production line docking or manual bottle placement and can be used as a standalone machine or connected to a production line.

Configured with an elastic pressing belt mechanism, using spiral bevel gear transmission, mechanically synchronized with the conveying line mechanism to ensure labeling accuracy.

Equipped with an automatic bottle separation mechanism, which automatically adjusts the spacing of bottles to ensure the stability of subsequent bottle guiding, conveying, and labeling.

Configured with a pressing mechanism, featuring a combination of elastic sponge rollers that can be quickly disassembled and assembled to adapt to different label sizes. An optional powered secondary pressing mechanism is available.

The label station is equipped with an eight-dimensional spatial adjustment capability, providing a powerful and flexible spatial adjustment ability that allows any product to be adjusted within minutes.

The label station's servo motor, sourced from a reputable manufacturer, is a 750W high-power, high-torque, low-inertia imported servo motor that achieves closed-loop control to meet the requirements for high-speed and high-precision label positioning.

The pressure between the label station's active shaft and the pressing roller is adjustable, allowing the label paper to move in any direction, rather than the common elastic clamping method where the label is left to run freely. The segmented clutch ensures more balanced tension. The rewinding mechanism uses a dual-pressing roller structure to ensure the label is taut while avoiding breakage caused by damage to the backing paper from die-cutting.

The label undergoes multiple processes, including being flattened by a scraper, pressed by a non-powered sponge roller, and squeezed by a powered sponge roller, to complete the labeling process without any bubbles, making it particularly suitable for applying transparent labels to frosted bottles.

The control system uses a Siemens PLC from Germany, which is reliable and stable. The operator interface is a mainstream brand large-screen touch screen that is intuitive, simple, and easy to use.

The interface is available in both Chinese and English and features functions such as automatic machine shutdown in case of failure, automatic alarm diagnosis, infinitely variable production rate setting, production counting, and alarm history record query. The intelligent and simple interface allows operators to use it after minimal training.

The machine body is made of SUS304 stainless steel, and the structural components are made of LY12 anodized aluminum alloy.

A rolling or three-roller mechanism can be added to achieve automatic full-circumference labeling for square and round bottles.
