Product Characteristics 1

GUANGDONG LEVA PACKAGING EQUIPMENT CO.,LTD.
GuangDong-GuangZhou, ChinaNumber of cans sealed:
1
Number of coiling wheels:
4 (2 first coiling wheels, 2 second coiling wheels)
Canning speed:
20 - 55 cans per minute (adjustable, depending on the material, size of the cans and the content material)
Can sealing height:
25 - 220mm (A larger height range requires additional molds.)
Can sealing diameter:
30 - 110mm (8 stations), 60 - 160mm (6 stations)
Air consumption:
150L/min
Working air pressure:
≥ 0.6 MPa
Working power supply:
Single-phase AC 220V 50/60Hz
Total power:
1.7 KW
Net weight:
330KG (approx.) Gross weight: 400KG (approx.)
Conveyor belt height:
850mm
Main material of the equipment:
304# stainless steel
Equipment exterior dimensions:
approximately 2430mm (length) * 848mm (width) * 1654mm (height)
Dimensions of the packing wooden case:
Length 1210mm * Width 960mm * Height 1730mm
PLCSIEMENS Germany
Touch screen SIEMENS Germany
Seaming BearingsNSK Japan
Frequency converterDELTA/SIEMENS Taiwan/Germany
Photoelectric sensorSICK/AUTONIX Germany/Korea
Proximity detectorPANASONIC Japan
RelaySIEMENS Germany
Fuse base SCHNEIDER France
BreakerSCHNEIDER France
Pneumatic component SYMTECH/AIRTAC Italy/Taiwan
Servo motor INOVANCE China
Switch power DELTA Taiwan
Conveyor belt motorVTV Taiwan
Frenquency converter of conveyor belt motorKEKEN China
Seaming motor MODUOLI China
Seaming roller HSIEH Taiwan
TurntablePE LPE
Product Description
Technical Parameter
Configuration List

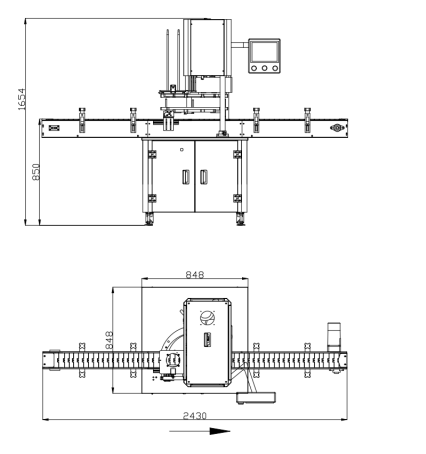

Technical Drawing
