High flatness and corrosion-resistant end surface sealing.
-
Keyboard lock function, stop (cut off) electrical parameter protection and indication.
-
No raw water bypass during regeneration, can set maximum interval regeneration days.
-
Equipped with signal output port, remote control port, can receive power source signals.
-
With interlock function, can be used to supply water separately to regeneration systems.
-
Optional operation according to time type and flow type.

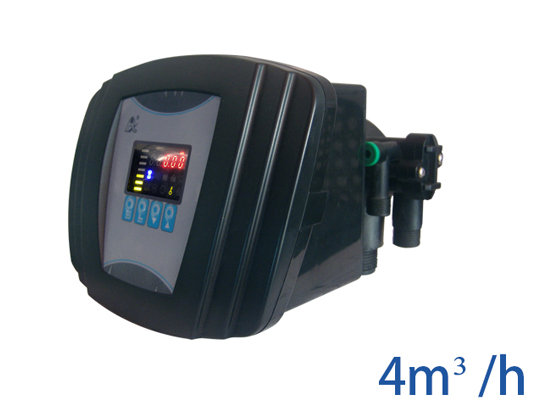

Home/Water Treatment Equipment/Fully Automatic Softening Valve 63504C(F63I1) / 63604C(F63I3)/
Wenzhou Runxin Manufacturing Machine Co. Ltd
ZheJiang-WenZhou, ChinaModel
Time Type: 63504C(F6311)
Flow Type: 63504C(F6311)
Installation Method:
v
Inlet/outlet
1" M
Drain Port:
1/2" M
Salt Suction Port:
3/8" M
Base:
2.5"-8NPSM (Tank Port)
Center Tube:
1.05" OD
Water Output:
4 m³/h
Suitable Tank Size:
6"-18"
Operating Pressure:
0.15-0.6MPa
Inlet Water Temperature:
5-50°C
Inlet Water Turbidity:
Turbidity < 5FTU
Suitable Power Supply:
Input AC100 ~ 240V/50 ~ 60HZ Output DC12V/1.5A
Applicable Scenarios:
Domestic softening, ion exchange systems, boiler water softening systems, reverse osmosis pretreatment softening systems.
