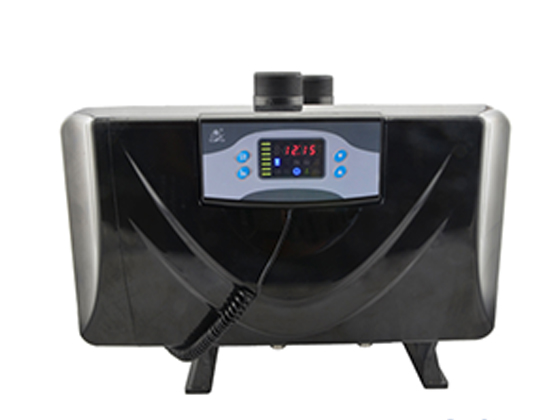

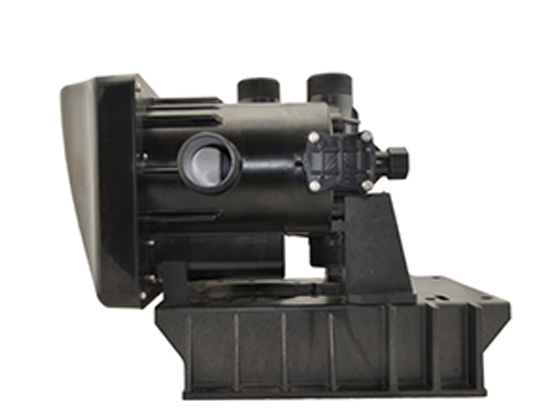

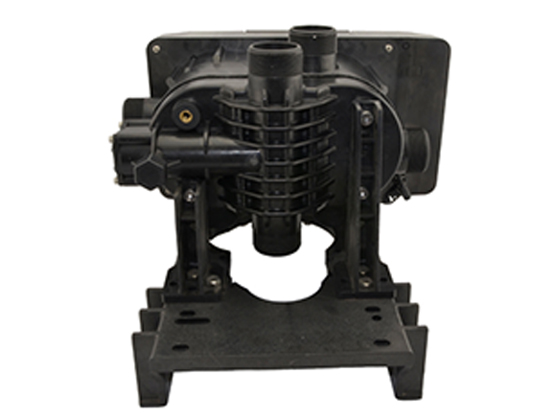

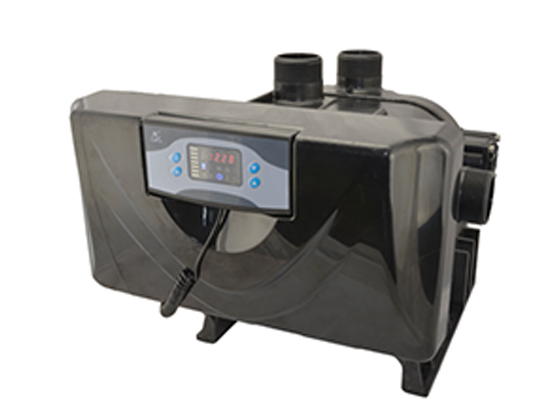

ZheJiang-WenZhou, ChinaF95B1/B3 Automatic Multiport Filter Valves
The F95B1/B3 operates with a flow rate of 20m³/h and features a planar and corrosion resistant gasket for opening and closing. This product is equipped with two cores. One controls the inflow of the water, while the other handles outflow. Service, backwash, and fast rinse functions can be realized through parameter modification of the valve. The F95B1 is a timer clock type while the F95B3 is a meter type.
Model
F95B1/B3(53520/53620)
Regeneration
Time clock type / meter type
Mount type
Side mount
Inlet/outlet
2"M
Drain
2"M
Mounting base
Side mount, Top and bottom distributor basket2"M
Riser pipe
Side mount, Top and bottom distributor basket2"M
Flow rate
20m³/h
Filter tank28"--40"
Water pressure0.2-0.6MPa
Water temperature5-50℃
Water turbidity<20FTU
Power adapterInputAC100~240V/50~60HZ OutputDC24V/1.5A
ApplicationActivated carbon filter, sand filter
Filter mediaQuartz sand, activated carbon
