● One-body design, stronger ability of anti-viberation and anti-interference, more suitable for harsh working environment
● LCD touch screen control, friendly user interface with different language● Three operating frequencies(low/medium/high) can select the most suitable frequency automatically according to productssignal● With self-learning(product compensation adjustment function), the metal detector will automatically collect productsinformation and recommend a suitable phase parameter for different products, so that the impact of product effect will beminimized to ensure reliable detection● Advanced DSP technology has improved inspecting performance greatly. Leading genetic algorithm will suppress productssignal effectively to achieve reliable sensitivity● Can store about 100 product’s data, suitable for production line with variety detecting products● Several Options available to choose on request: Rejection System, Adjustable speed motor, et

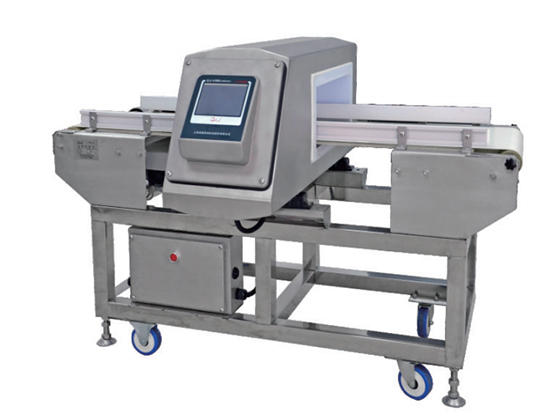

Home/Packaging equipment/GJ-VIII Digital Metal Detector---3008/

Shanghai Gaojing Detection Technology Co.,Ltd
ShangHai, ChinaModel
3008
Sensitivity FeΦ (mm)
0.5
Sensitivity SusΦ (mm)
1.0
Tunnel Width (mm)
300
Tunnel Height (mm)
80
Maximum Load
10kg
Power Supply
220v
Conveyor Speed
28(meters/minute)
Alarm Method
Conveyor auto Stop(Standard) / Rejection System(Optional)
Product Description
Technical Parameter

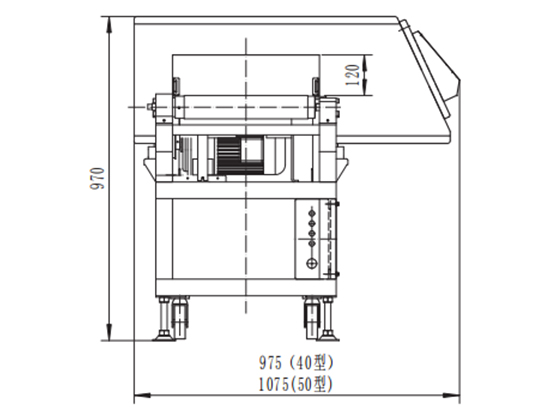

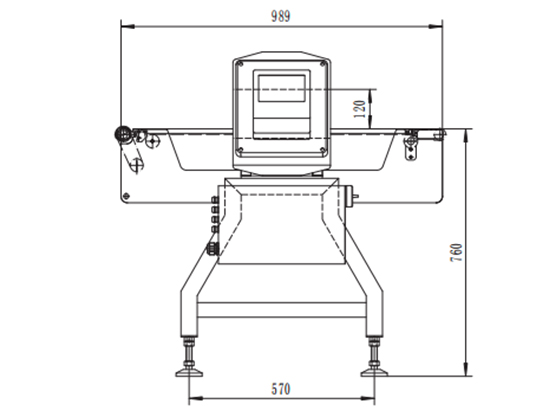

Technical Drawing
