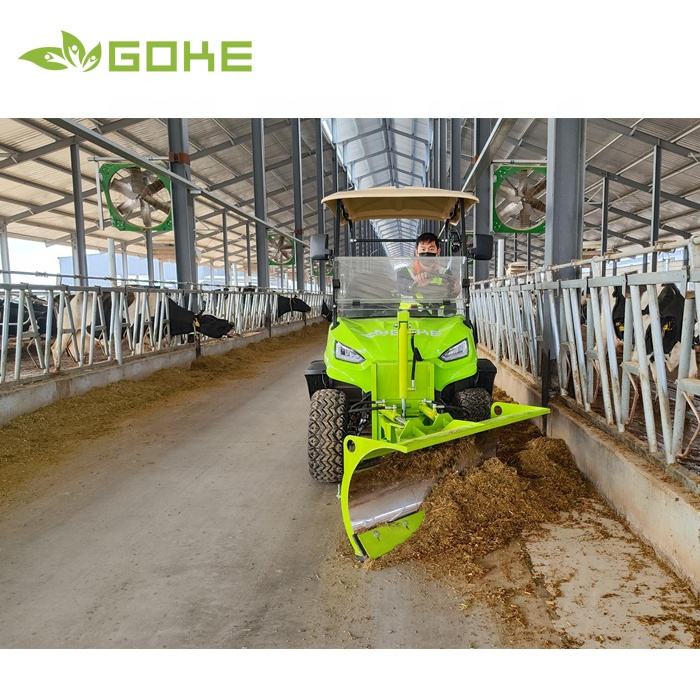

The arc-shaped pusher plate can flexibly switch from left, middle and right directions to realize multiple func-tions of pushing, turning and cleaning. The battery-powered pusher is equipped with a large rechargeablebattery, which has a long working time. The retaining wall cleaning shovel and roller brush are optional.
2 Seater with Cabine，
Storage box behind seat，
Fullv sealed hvdraulic control system，
GPS mount ready.
Control system: 48V intelligent communication system
Battery: Chilwee Battery 8V 150AH 6 pieces
Electric motor: AC 5KW
Charger: Car charger, 48V/25A
Braking system: electromagnetic braking
Parking system: electromagnetic parking, automatic parking with engine off
Front suspension system: MacPherson independent suspension (reinforced)
Rear suspension system: single leaf spring+cylindrical hydraulic shock absorber
Tire specification: 155T12, large pattern tire
Maximum driving speed: 20km/h
Equipment self weight: 600kg
Overall dimensions (length x width x height): 3.6m x 1.6m x 1.9m
Wheelbase: 1670mm
Track width: front880/rear 990
Pusher board width: 1.6 meters
Pushing angle: 50 °
Range: 60-80 kilometers (range shortened below 0 ° C)
Charging time: 4-5 hours (charging time may increase below 0 ° C)
Charging equipment: conventional 220V AC charging (three hole socket)
