The DS5P, Xinje's first servo drive supporting the Profinet bus, boasts advantages such as high positioning accuracy, short synchronization cycle, flexible field wiring, and easy equipment maintenance. It can be widely used in industries including 3C electronics, lithium batteries, automotive, logistics, photovoltaics, and filling.
Features:
- Supports PROFIdrive industry standard specifications
Complies with PROFIdrive industry standard specifications, offering high compatibility and interoperability with other devices:
- Supports specification version PROFINET V2.3;
- Supports industry standards PROFIdrive AC1, PROFIdrive AC3, and PROFIdrive AC4;
- Supports IRT and RT functions
In the channel, real-time data is transmitted via Ethernet with a cycle time of up to 4ms.
The channel is suitable for transmitting data with more precise timing requirements, with a cycle time of up to 1ms.
- Supports multiple message types
- Convenient networking, flexible cabling, and precise positioning
Equipped with a 100Mbps full-duplex Ethernet port, allowing for both network ports to connect and disconnect;
- Flexible topology for faster networking and more flexible cabling;
Supports linear, star, tree, and ring network topologies, allowing for flexible addition or deletion of nodes as needed.
Minimum synchronization period up to 250µs, with synchronization jitter less than 1µs.

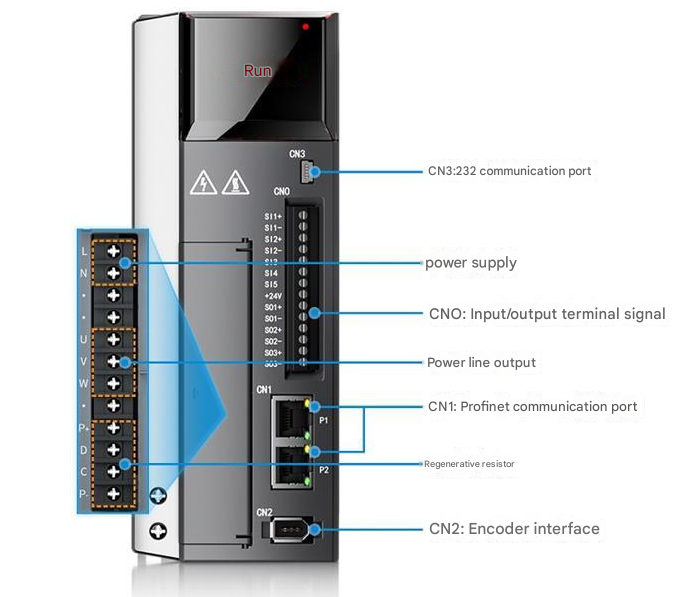

- Simple wiring and easy to use

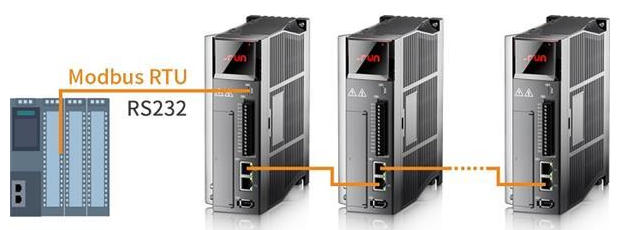

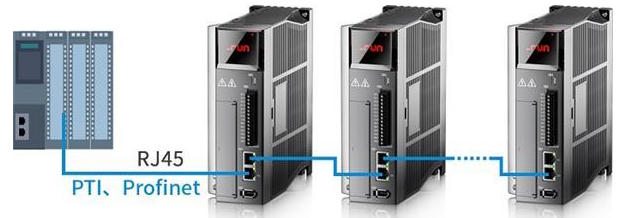

Supports multiple communication methods including PTI, Profinet, and Modbus RTU, enabling real-time transmission of user/process data and diagnostic data with just one cable, facilitating simple and quick connection to control systems.
Reliable operation
Equipped with a high-protection-level B3 motor, with 17-bit or 23-bit absolute values available, and a standard oil seal on the shaft end, achieving an IP67 protection rating for effective dust and water resistance.
Parameters:
| Project | DS5P Series PROFINET Servo Drive |
|---|---|
| Power Range | 0.1kW~0.75kW |
| Input Power | Single-phase 200~240V, 50Hz~60Hz |
| Encoder Feedback | 17bit/23bit communication encoder |
| Control Modes | Three-phase full-wave rectification IPM, PWM control, sinusoidal current drive mode |
| Operating Environment Temperature | Operating: -10°C~40°C (no condensation) / Storage: -20°C~60°C (no condensation) |
| Operating Environment Humidity | Storage: less than 90%RH (no condensation) |
| Vibration/Impact Resistance | 4.9m/s² / 19.6m/s² |
| Protection Functions | Overvoltage, undervoltage, overheating, overcurrent, overload, overspeed, analog input abnormality, large position deviation, output short circuit, encoder abnormality, regeneration abnormality, overtravel, oscillation protection, phase loss protection, etc. |
| Dynamic Brake | None |
| Communication Function | RS232: standard ModbusRTU protocol; PROFINET: supports PROFINET bus communication (maximum 64 axes) |
| Brake Resistor | Built-in brake resistor; externally connectable brake resistor (only 0.75kW) |
| Display Unit | 5-digit LED tube, power indicator light, 4 key-press operations |
| Output Form | None |
| Subdivided Function | None |
| Collective Electrode Z Phase Output | Yes |
| Digital Input | Servo enable, alarm clear, prohibit forward rotation, prohibit reverse rotation, torque limit selection, internal speed selection, gear ratio switching, mode switching, position deviation clear, internal position step change signal |
| Digital Output Specifications | 3-channel digital output; positioning completion, servo ready, alarm output, speed attainment, rotation detection, torque limit output, synchronization detection, brake release output |
