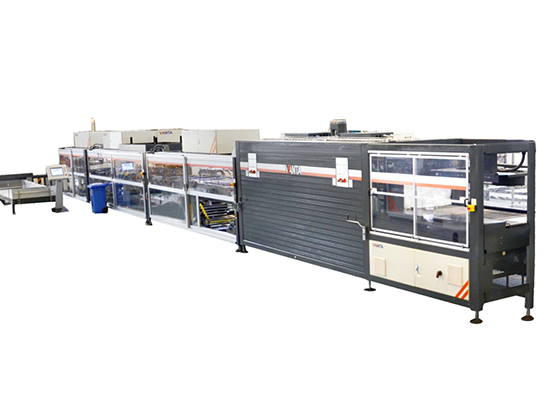

The all-in-one paper and flm machine is a space- and money-saving packaging option. lt includespackaging that uses fuly or partially closed cartons and either half trays with film or bottom trays with film. 100packets per minute is the maximum capacity
The heat shrink channel and the film packaging unit are automatically closed by the machine control systemwhile the machine is operating on "wrap-around" or "tray only" packaging. The device is best suited forproduction lines with frequent changes in product and package formats. Most importantly, it may be easilycustomized to market strategies in order to satisfy unique packaging needs in small batches. New items andpackage formats may simply be handled by the machine

EQUIPMENT ADVANTAGES

• Advanced BAODE Shrink tunnel
  With high - efficiency hot - air directional cycle, it reduces heat energy losses by 10–18% compared to traditional shrink tunnels. Operates at ~150–160℃ (vs. conventional 180–200℃), cutting total power consumption by 20–25%.
• Bottom - visualized pre - cut film feeding
  Cuts film precisely, compatible with 0.04mm - thick film to reduce overall film usage by 1/3.
• Servo Motor control
  Independently controls each moving part, ensuring stability and precision. Synchronously calculates operational data to boost productivity.
• Advanced Horizontal hot - melt gluing system
  Adjustable pasting length (10–25mm) based on customer needs. Glue spray amount and position are optimized for uniform adhesion, enhancing carton stability.
• Silicone folding conveyor belt
  High - efficiency, long - lasting, non - deformable, and static - free (no lubrication needed). Eliminates carton pollution and scratching caused by traditional conveying mechanisms.
• Anti - falling Patent Design
  Automatically responds to feeding abnormalities to prevent bottle breakage/damage. Suitable for special - shaped containers (e.g., cans, gas bottles).
• Touch - screen operation panel
  Allows direct parameter setting. Automatically displays fault - troubleshooting guidance. Enables full - machine manual control and automatic speed adjustment.
