ZheJiang-HangZhou, ChinaX-ray Intelligent Foreign Object Detection System
The X-ray foreign object detection system is built on AI intelligent defect recognition algorithm and artificial intelligence technology, to deliver high-precision, highly adaptable detection of foreign objects and defects. It is widely used in food production and industrial manufacturing, capable of identifying extremely tiny foreign objects including metal, glass, stone, bone, high-density rubber and plastic both on the surface and inside the products. For enterprises with high production standards, it provides a robust quality control solution and reliable quality guarantee throughout the production process.

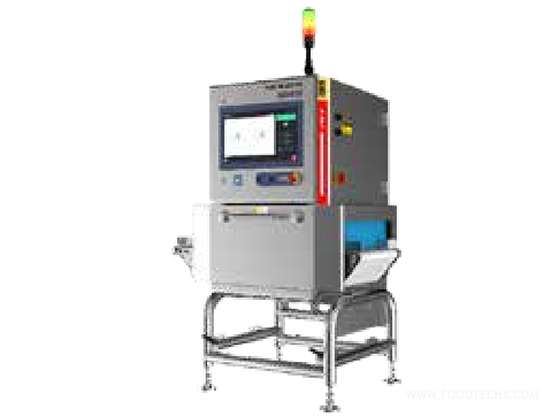

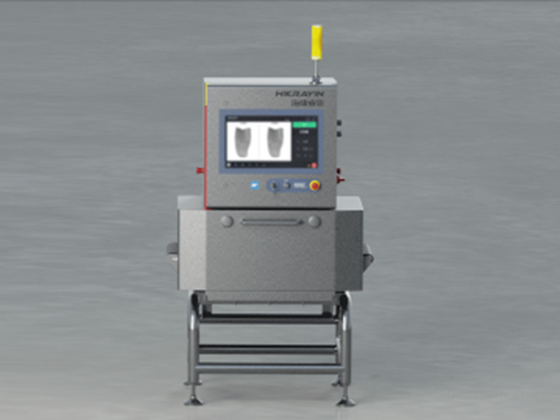

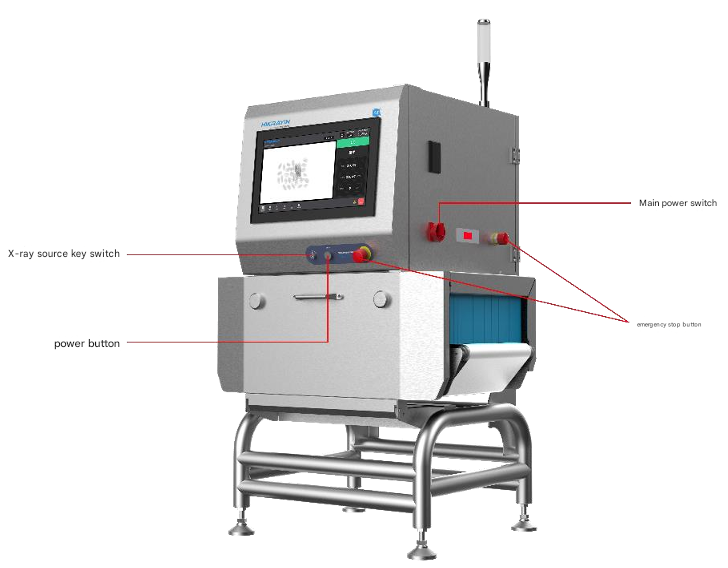

HD X-ray Intelligent Foreign Object Detection System ISD-NFX4016-A2
The HD X-ray intelligent foreign object detection system adopts cutting-edge artificial intelligence technology and AI-XSP imaging algorithm to achieve high-precision and highly adaptable foreign object and defect detection performance. It provides effective technical support for enterprises to improve quality and efficiency in production.
STRUCTURE
:
Order Model
ISD-NFX4016-A2
Tunnel Opening Width
400mm
Tunnel Opening Height
160mm
Overall Dimensions
2042(H)*1097(L)*987(W), including signal light height
Overall Weight
550kg
Housing Material
Stainless Steel (SUS304)
CONVEYING SYSTERM
:
Conveyor Belt Material
Food-grade PU
Conveyor Belt Width
440mm
Conveyor Belt Height from Ground
800±50mm, customizable
Conveyor Belt Speed
≤45m/min
Max Load
10kg
X-RAY SYSTERM
:
X-ray Tube Voltage
40~80kV, adjustable; Total Power <350W
X-ray Tube Current
4000-8000μA
X-ray Power
350W
Detector
0.1mm TDI Single-energy Detector
DETECTION SENSITIVITY
:
Stainless Steel Ball (Φ)
0.2mm
Stainless Steel Wire
0.2*2mm
Glass Ball (Φ)
0.8mm
Ceramic Ball (Φ)
0.8mm
Algorithm Support
Foreign Object/Defect Detection
COMPLETE MACHINE CONFIGURATION:
Ingress Protection RatingTransmission Part: IP66; Other Areas: IP66
Tested Product FormPackaged products, bulk products
Rejection MethodNG shutdown; Automatic rejection (optional rejection mechanism, multiple types available)
Alarm ModeAudible and visual alarm
Display Mode21.5-inch touch screen, 1920*1080 resolution
Cooling MethodIndustrial air conditioner, constant temperature control / temperature adjustable via panel
Radiation Protection4 layers of protective lead curtains at each inlet and outlet
Radiation Safety≤1μSv/h
Power SupplyAC220V, 50/60HZ, allowable voltage fluctuation range within ±10%
Operating Temperature-10~40℃
Operating Humidity30~90%RH, non-condensing
InterfacesEthernet, USB; Support MES docking
Product Description
Technical Parameter
Configuration List

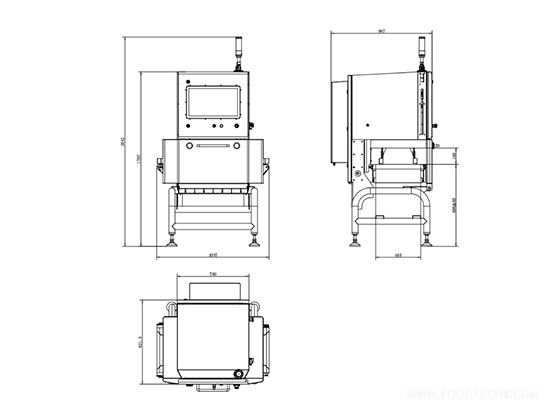

Technical Drawing
