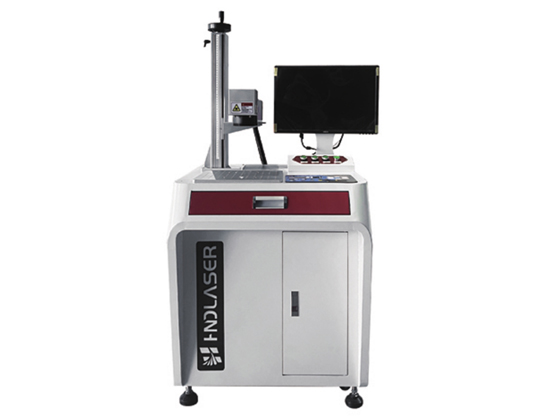

Home/Packaging equipment/Label Equipment/HF1000 series laser marking Machine & Laser Engraving Machine, red and white models ---HF1008/
Huinengda Laser
Zhangjiagang, ChinaShort wavelength, good beam quality, and thin marking lines. It belongs to "cold processing" and has little thermal influence.
Common areas: electronics industry, glass gemstones, immutability marking in the medical industry, etc.
Product Model
HF1008
Laser Wavelength (nm) :
1064 (for all models in the series)
Output power (V)
≥8
Laser Frequency (KHz)
Fixed frequency
Laser Control Card
Genuine Golden Orange Laser Control Card (standard configuration)/ Xingcheng, Basiliang, umark(optional)
Supported Languages
Simplified Chinese, Traditional Chinese, English, Japanese, Korean (default) for all
Control Computer
4U industrial computer + 19-inch HD display (standard) for all
Scanning Galvanometer
Silver-shell high-speed scanning galvanometer for all
Scanning Speed (mm/s)
Jumping speed < 7000 (default) for all
Optical Lens
Quartz lens for all
Field Lens Range (mm*mm)
110110 (default), 150150, 175175, 300300 for all
Interface Expansion
USB interface (supports PC mouse) for all
Interface Communication
Custom development (optional) for all
Cooling Method
Air cooling for all
Rated Power (kw)
0.4
Overall Dimensions (mm)
800*600*1430(white)/650*720*1440(red and white)
Overall Weight (kg)
90 (white)/100 (red and white) for all
