Home/Packaging Material Equipment/HS-XGJ-QSF---Full Servo Non-glue Paper Straw Making Machine/

Wenzhou Hongshuo Machinery Co., Ltd.

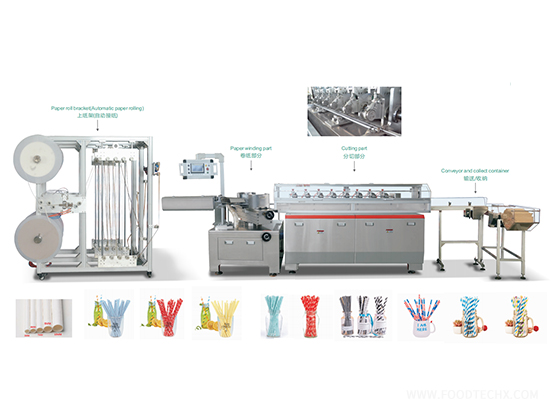

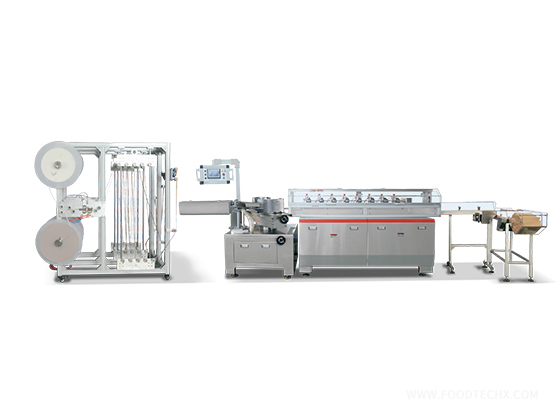

ZheJiang-WenZhou, ChinaHS-XGJ-QSF is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting,and adopts a CNC multi cutter system to directly produce finished paper straws.The paper straw produced by the machine can withstand high temperatureof100 degrees (normal one is 70 degrees), but also can be degraded without pollution to the environment.
Advantages:
1. Save space and time.
2. The machine has sterilization function.
3. Have no problems caused by weather and glue.
4. The paper straws can withstand in high temperature and be degradable.
5. The product loss rate is greatly reduced.
6. The hardness increases with the same thickness raw materials.
7.The whole machine adopts servo motor.
8.It is suitable for double-use models with glue and no glue

Raw Material:
Pure Wood Pulp Paper
Paper Layers:
3-4 layers
Paper Thickness (from inside to outside):
120g/m²,120g/m²,60g/m²
Tube Thickness:
0.3-2mm
Running Speed:
40-100meters/min
Tube Size:
4.5-12mm
Cutting System servo motors:
servo motors, 8 set knives
Cutting Length:
70-1050mm
Power Source:
380V 50Hz
Operation Person:
1-2 person
Dimensions
:
Paper Roll Bracket:
1600*2000*1100mm
Main Part:
2300*860*1270mm
Collection Part:
1900*970*1770mm
Weight:
1400kg
