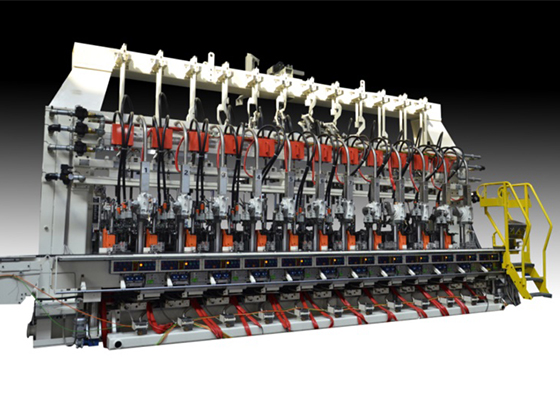

The HS bottle-making machine is becoming the industry standard product nowadays, featuring more droplet and group specifications. The higher precision processing and assembly procedures ensure the reliability and stability of the machine. The existing molds and mechanisms can continue to be used on this product. It also has the capacity to expand with advanced technologies such as PPC devices and technologies, JETTER control systems, and 182 bottle conveyors.

HS Bottle Making Machine Configuration:

framework

26-way electrical valve box

Prototype mold fixture mechanism

Cooling of the nozzle in the initial mold

·Blow-off mechanism

Funnel mechanism

Hydraulic buffer flip mechanism

·Pliers fixture mechanism

·Forming die fixture mechanism

Positive air supply mechanism

·Initial forming mold switch mechanism

Servo clamp bottle mechanism

Cooling of the nozzle of the forming mold

·Forming mold bottom mechanism, vertical cooling through chassis with vacuum



Flow material system

Synchronous belt servo divider

Fixed-angle double-axis crosscutting machine

·Split-flow material feeding system





Optional flow material system

Pull-rod servo divider





Main frame

The main frame includes a welded chassis, columns, crossbeams, distribution box, primary side distribution box and pipelines.

The distribution box and pipelines are made of corrosion-resistant and anti-rust materials.

The core and reverse blowing use plate valves to control the separate air supply, with independent electronic timing.
