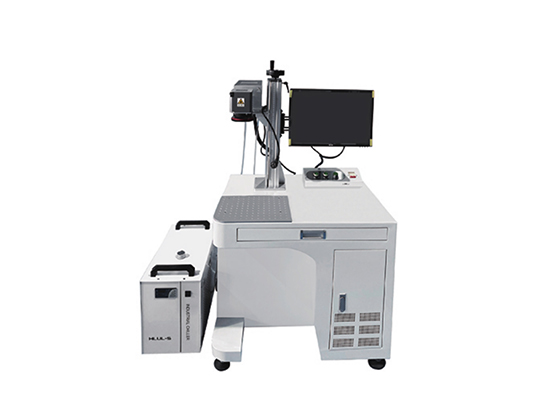

Home/Packaging equipment/Label Equipment/HU1003-1 Laser Marking Machine & Laser Engraving Machine /
Huinengda Laser
Zhangjiagang, ChinaShort wavelength, good beam quality, and thin marking lines. It belongs to "cold processing" and has little thermal influence.
Common areas: electronics industry, glass gemstones, immutability marking in the medical industry, etc.
Product Model
HU1003-1
Laser Wavelength (nm) :
355
Output power (V)
≥3.5
Laser Frequency (KHz)
30
Laser Control Card
Genuine Golden Orange Laser Control Card (standard configuration)/ Xingcheng, Basiliang, umark(optional)
Supported Languages
Simplified Chinese, Traditional Chinese, English, Japanese, Korean (default) for all
Control Computer
4U industrial computer + 19-inch HD display (standard) for all
Scanning Galvanometer
Silver-shell high-speed scanning galvanometer for all
Scanning Speed (mm/s)
Jumping speed < 7000 (default) for all
Optical Lens
Quartz lens for all
Field Lens Range (mm*mm)
110*110(default)、150*150、175*175、300*300
Interface Expansion
USB interface (supports PC mouse) for all
Interface Communication
Custom development (optional) for all
Cooling Method
Water cooling
Rated Power (kw)
1.2
Overall Dimensions (mm)
800*600*1430(white)/650*720*1440(red)
Overall Weight (kg)
90(white)/100(red and white)
