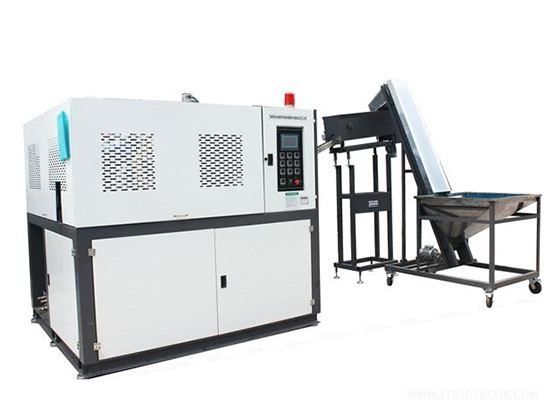

Home/Packaging Material Equipment/HY-10L (1 to 1-10L) ---Fully automatic bottle blowing machine /
Zhejiang Hanyu Automation Technology Co., LTD
, ChinaModel :
HY-10L
CONTAINER
:
Number of Cavities
1
Max. Container Volume
10L
Max. Bottle Neck Diameter
60mm
Max. Bottle Body Diameter
220mm
Max. Bottle Height
450mm
Production Capacity
500-600 pcs/hour
ELECTRICAL SYSTEM
:
Max. Heating Power
40kW
Installed Power
45kW
Actual Power Consumption
30kW
AIR SYSTEM
:
Operating Pressure
8bar
Low Pressure Air Consumption
0.6m³/min
Blowing Pressure
25-35bar
High Pressure Air Consumption
1.5m³/min
CHILLER WATER
:
Operating Pressure
3-6bar
Temperature
10℃
Flow Rate
50-260L/min
MACHINE
:
Machine Dimensions (L×W×H)
3000×1800×2100mm
Machine Weight
2500kg
Mold Clamping Servo Xinje China
Displacement Servo Motor Xinje China
Bottom Mold Cylinder AIRTAC Taiwan, China
Extension Cylinder AIRTAC Taiwan, China
Solenoid Valve Festo Germany
PLCMitsubishi Japan
Proximity Switch Autonics South Korea
Photoelectric Switch Jinlida China
Magnetic Switch Festo Germany
Rotating Motor Mengli Taiwan, China
Mold Clamping Solenoid ARK South Korea
Extension Solenoid Valve Festo Germany
Temperature Module Zhengyu China
Circuit Breaker Chint China
AC Contactor Chint China
