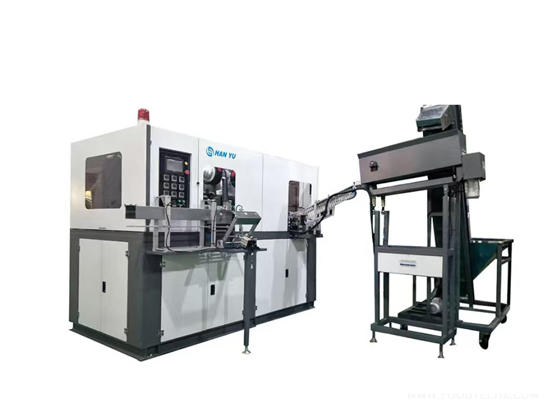

Home/Packaging Material Equipment/HY-3000---Fully Automatic Bottle Blowing Machine/
Zhejiang Hanyu Automation Technology Co., LTD
, ChinaClamping System
:
Number of Cavity
3 Cavity
Clamping Force
320 KN
Mould Stroke
135 MM
Number of Holder
60 Pcs
Bottle Specifications
:
Max. Volume of Bottle
2 L
Max. Diameter of Bottle
105 MM
Max. Height of Bottle
335 MM
Max. Height of Preform
150 MM
Max. Mouth Size of Bottle
38 MM
* Theoretical Output :
3000 Bottles/hour
Electrical System:
Heating Power45 KW
Installed Power60 KW
Voltage220V/380V
Air System:
Working Pressure0.8-1.0 MPA
Blowing Pressure2.0-4.0 MPA
High Pressure Air Consumption2400-3600 L/MIN
Low Pressure Air Consumption1400 L/MIN
Chilled Water System:
Pressure0.3-0.5 Mpa
Temperature Range8-24 °C
Flow Rate50-260 L/min
Machine Size:
Dimension of Machine3.12×1.85×2.03 M
Weight of Machine3600 Kg
Note: *Actual output depends on the volume, weight and height of the bottle.The actual output depends on the bottle size, shape and weight.
