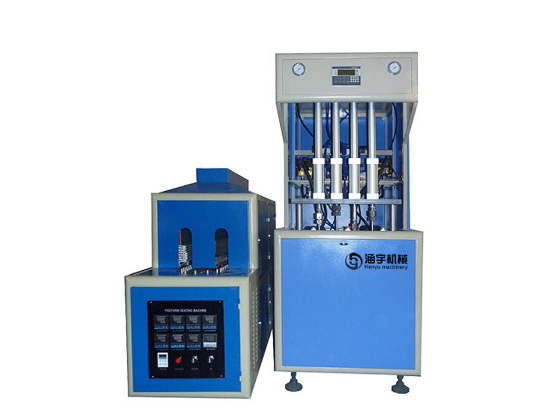

Home/Packaging Material Equipment/HY-B4 Semi-automatic Bottle Blowing Machine/
Zhejiang Hanyu Automation Technology Co., LTD
, ChinaType
HY-B4
Product Material
PET
Container Volume
≤2 L
Theoretical Output
1700 PCS/HR
Max. Bottle Height
360 mm
Max. Bottle Diameter
120 mm
Max. Mould Plate Dimension (L×W)
340 mm
Max. Mould Thickness
200 mm
Clamping Force
80 KN
Mould Opening Stroke
250/370 mm
Working Pressure
0.8-1.0 MPA
Air Compressor for Blowing
2.0-3.0 MPA
Power
28 KW
Voltage/Frequency
660-110/50-60 V/HZ
Machine Weight
1000 KG
Machine Dimensions (L×W×H)
1700×850×1950 mm
Heater Dimensions (L×W×H)
1900×850×1650mm
Heater Weight
600 KG
Safety
Auto-emergency alarm
Safety
Safety interlocking device
