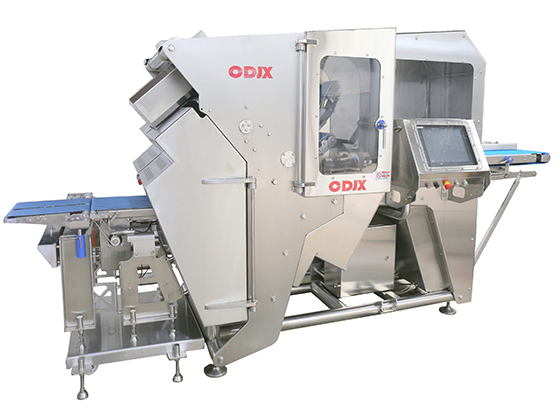

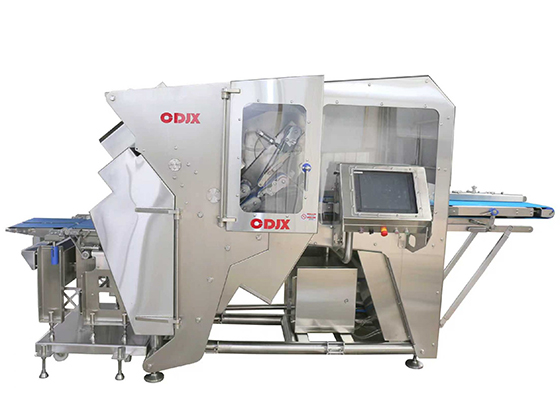

High Speed Slicer --- CDGS300
/
Hebei Chuanda Machinery Manufacturing Co. , Ltd.
HeBei-TangShan, China
Send inquiry
Contact supplier
All Transmissions Of This Machine Are Controlled By Servo And Plc, And Each Action Can Be Set Freely To Fully Realize Automated Production.
This Machine Can Cut Bacon, Cheese, Ham, Sausage And Streaky Pork.
This Machine Can Be Additionally Connected To a Conveyor Belt And a Packaging Production Line To Achieve Full Automation From Cutting To Packaging.
Equipped with weighing module, it can sort materials with different weights.
Equipped With Portioning Function And Stacking Function.
Equipped With Tailing Discharge Function.
Voltage&Frequency:
380V/50Hz/3Phase Or According To Customer’s Demands
Power:
18kw
Capacity:
750 Times/Minute
External Dimension:
3950 × 1660 x 2080 mm
Weight:
1800kg
Feeding Size:
Width ≤ 330mm, Height ≤ 80mm, Length ≤ 600mm
Cutting Size:
Adjustable Within The Range Of 0.5 ~ 50mm
Feeding Port Height:
1200mm
Discharging Port Height:
950mm
Cutting Temperature for the Frozen Meat:
–-5°C ~0°C
Meat Thaw Environment Temperature:
-5°C ~ -3°C
Suitable Cutting Temperature for the Frozen Meat:
-4°C ~ -2°C
Material Input Way:
Continuously
Control System:
Plc
