Main performance and structural features:

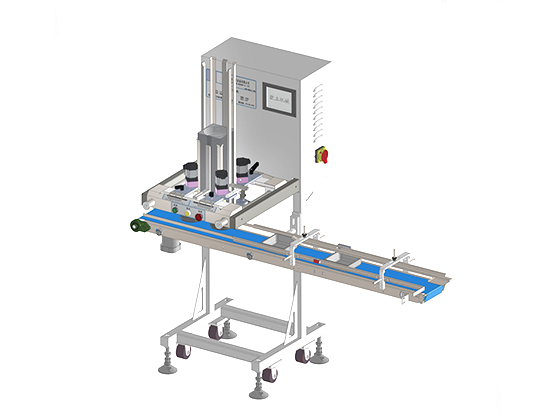

The high-speed rotating lower support machine consists of 4 sets of synchronous stepping motors, lower support wheels, frame, control system and discharge conveyor. It automatically opens, lowers and conveys the support box out.

The opening and closing speed can be set between 30 and 220 per minute.

The whole machine adopts 220V 50HZ power supply, with a total power of 0.6KW.

System advantages:

Four wheels rotate synchronously. Stainless steel opening and pushing blades are custom-made according to the size of the tray to ensure stable tray lifting and improve automation.

2. The Kaituo system reduces contamination without human contact, saves labor, and increases production capacity.

3. The overall structure is simple and compact, easy to operate. The belt can be quickly disassembled without tools for easy cleaning and maintenance.

4. The control system adopts high-quality electrical components, intelligent PLC control, and touch screen display. It features a user-friendly human-machine interface, making operation simple, intuitive and convenient.

5. The bottom supporting rollers are made of imported high-molecular PE wear-resistant material, which has a long service life and a low failure rate.

6. Multi-stage differential speed arrangement of materials ensures stable and high-speed material flow, and servo positioning is highly accurate.

7. The conveyor belt is a food-grade blue antibacterial PU belt. According to the characteristics of the box, anti-sticking belts, double-sided gauze belts, etc. can be selected as options.
