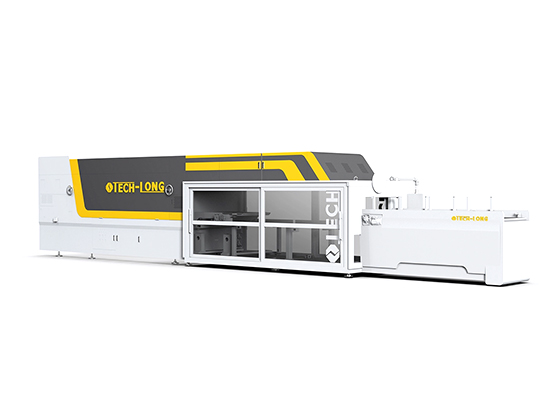

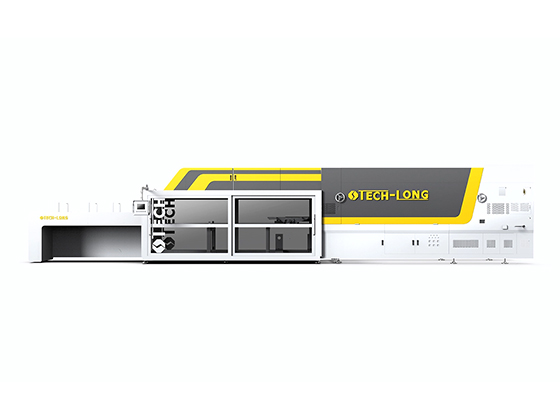

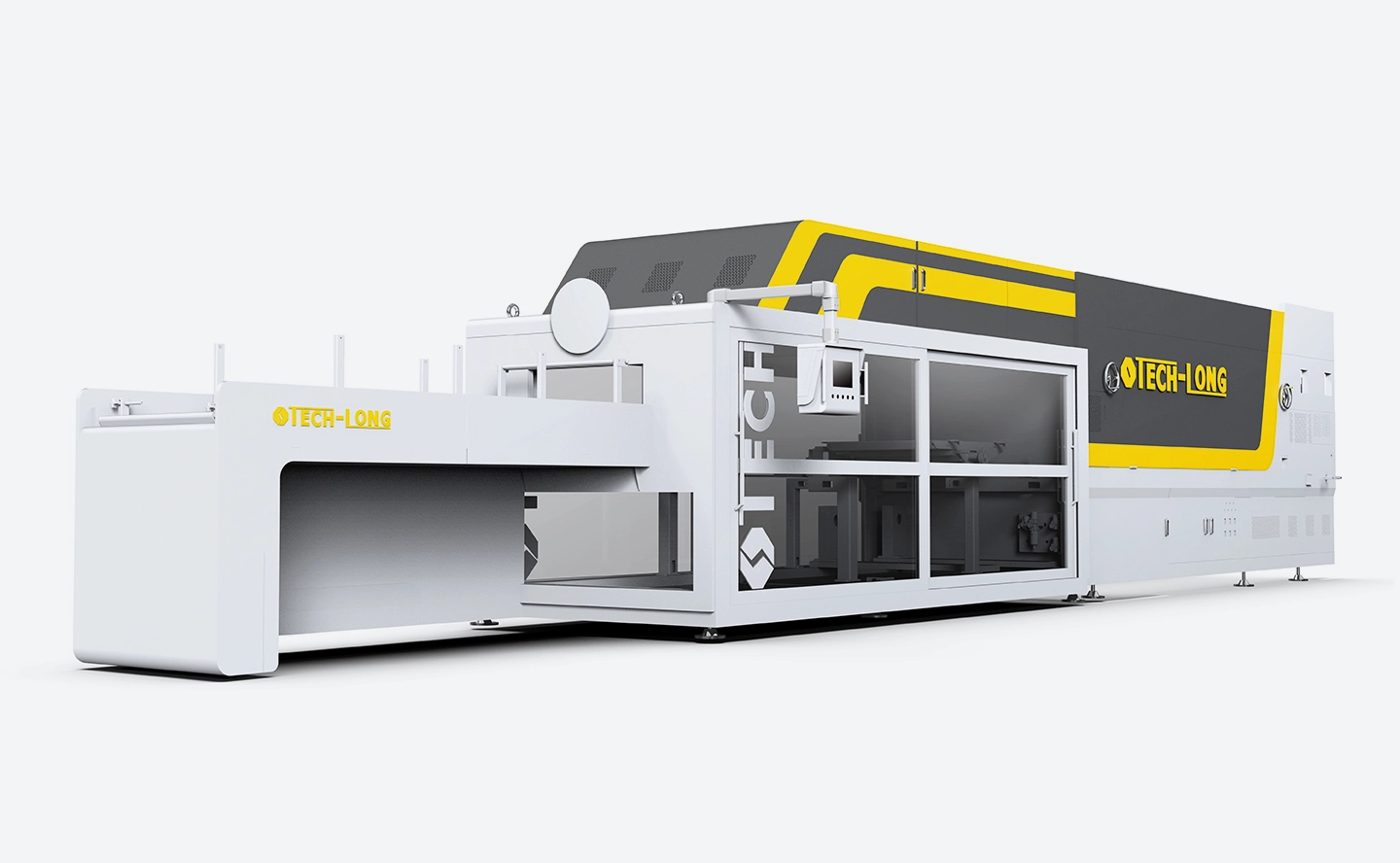

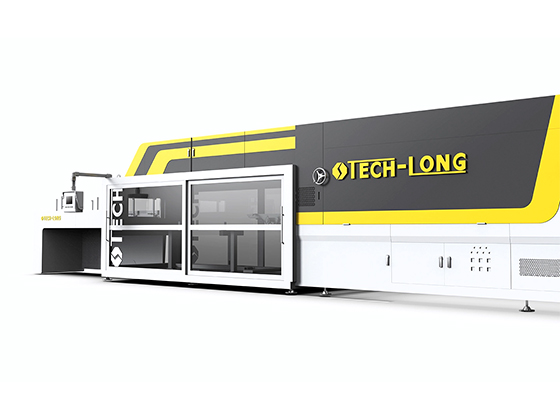

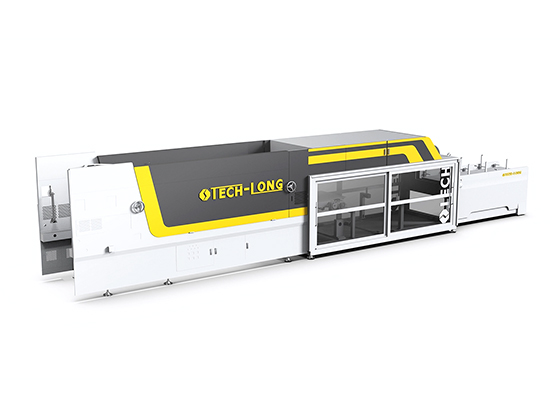

Hot Shrink Wrapper Machine for a variety of packaging specifications - TECH-LONG
TECH-LONG's fully automatic hot shrink wrapper machine was developed with completely independent property rights in 2002. It adopts a world-class servo control system and multi-servo motor drive, with high control precision and good stability. The products have been widely used in more than 50 countries and regions around the world.
The products have the advantages of high degree of automation, reliable control, simple adjustment, easy operation, and convenient maintenance. In order to further expand the market, we have been committed to the research and development of new products and strive to create more multi-field packaging products to meet customer needs.
Application scope
● Applicable packaging types: Applicable packaging types: plain film or printed film, plain film or printed film+ pad, plain film or printed film + tray, dislocation packaging;
● Applicable packaging formats: 2×2, 2×3, 3×4, 3×5, 4×5, 4×6, 4×7, 5×6, 5×7, 5×8, etc.;
● Applicable bottle diameters: Round bottles Φ50~Φ165, square bottles □50~ □165, special-shaped bottles (sample confirmation required);
● Applicable bottle base requirements: it should be relatively smooth (for example, for the petaloid bottle base or other special bottle base, sample confirmation is required);
● Applicable bottle capacity: 200~5000ml;
● Applicable bottle height: 120~350mm;
● Optimum ambient temperature: 5~40℃;
● Optimum ambient humidity: 50~65%RH;
● Optimum altitude: 5~3000 meters;
● Packaging output range: 20~120 packages/minute.
● Working power supply range: 380~480AC (±10%); 50~60Hz3PH+N+PE;
● Operating pressure range: 5~6Bar (filtered, free of water and impurities);
● Gas consumption: 100-200L/Min.
Main features of the device
MB30 is compatible with conventional packaging formats such as non-flexible bottle 2X3 to 4X7, and can be configured with external unwinding, automatic lubrication, UPS, pressure-free bottle feeding and other functions!
Features
1. The bottle conveyor belt uses photoelectric sensor to detect the vibration for bottle un-scrambling after bottle jam, which effectively reduces the bottle jams and gas consumption.
2. Quickly adjust the position of the bottle separation plate through scale indicator.
3. Servo finger grouping is convenient and quick.
4. Servo film loading, film cutting (servo as high configuration) and film wrapping (servo as high configuration), with film electrostatic elimination device, which is stable and reliable.
5. The bottle pushing and film wrapping drives are independently driven by servo, which is safe and stable with low noise.
6. Film pre-cutting is at the bottom, vacuum adsorption and transfer, with higher stability during operation at the high speed.
7. The bottle conveyor lane can be changed quickly as a whole, which is compatible with large and small bottles to reduce the time for bottle format changeover.
8. The distance between the films for double lanes can be adjusted after separation, and the left and right film rolls after separation can also be adjusted independently, making it easier to use.
9. Durable metal mesh belt discharge.
10. The oven has centralized heating and hot air circulation, featuring adjustable temperature, air volume and speed, fast heating, energy saving and good applicability to the film.
11. The maintenance-free design of the oven fan avoids the need for later maintenance.
12. With EU CE, North American UL and other safety certification standards.
