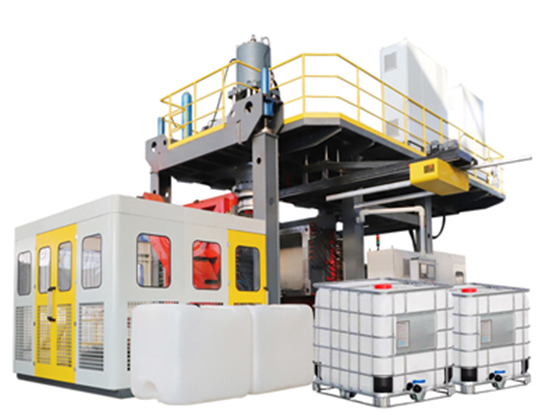

ShangHai, ChinaIBC tank blow molding machine used to produce range from 200L to 2000L IBC tank.
IBC Tank Daily Output:100-300PC
Delivery Date:3-4 Month
The standard name of the IBC barrel is a medium-sized bulk container, and its composition is divided into an inner tank and frame. Compared with round drums, IBC container drums can save 35% of storage space and can be reused multiple times, greatly reducing the cost of use.
Model No.
2 Layers
Max. Product Size
2000L
Machine Dimension
5.7m*10m*6.5 m
Machine Weight
38ton
Total Power
360kw
Average Power Consumption
234kw
Accumulator Die Head
:
Accumulator capacity
33kg
Heating Load
30kw
Extrusion System
:
Screw Diameter
125/125mm
Extruder Motor Power
30:1
Heating Power
110/110kw
Plasticizing Capacity
500kg/h
Mold Clamping Unit
:
Clamping Platen Size
1800*1800*80 mm
Max Mold Size
1600*1700 mm
Clamping Force
2200kn
Hydraulic System
:
Main Oil Pump Power
37kw
Small Oil Pump Power
7.5kw
Oil Tank Capacity
1000L
PLC SIEMENS Germany
Touch Screen SIEMENS Germany
Inverter SIEMENS Germany
Screw Motor SIEMENS Germany
Air Switch SIEMENS Germany
Contactor SIEMENS Germany
SSR(Solid State Relay) CARLO GAWAZZI Switzerland
Wall Thickness Controller MOOG USA
Servo Valve YUKEN Japan
Hydraulic Valve YUKEN Japan
Solenoid Valve YUKEN Japan
