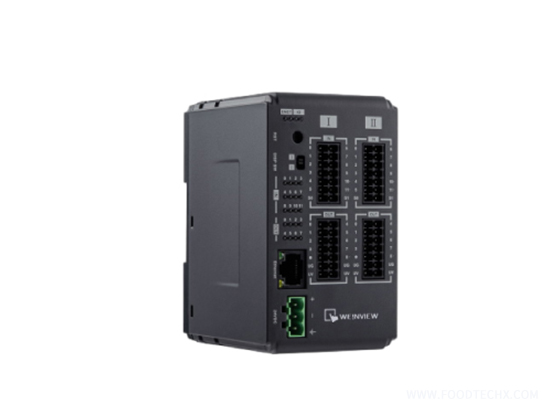

Communication Interface Specifications
:
- Ethernet Interface:
1 port
- Data Transfer Rate:
10/100 Mbps
- Data Transmission Medium:
4x2 twisted pair copper cable; Category 3 (10 Mbps), Category 5 (100 Mbps)
- Distance Between Stations:
100 m (max distance between switch and coupler, or coupler and coupler) - Communication Protocols: Modbus TCP Server, EtherNet/IP adapter
- Maximum TCP/IP Connections:
8 connections
- Network Isolation:
Yes
Digital Output
：
- Total Points:
16 points
- Output Type:
Relay
- Output Voltage:
250VAC/30VDC
- Output Current:
2A/Channel (Max 8A total)
- Response Speed:
10ms
- Isolation:
Yes, Relay Isolation
- High-Speed Output:
0 points
- High-Speed Output Details:
None
Digital Input
：
- Total Points:
24 points
- Isolation:
Yes, Optocoupler Isolation
- General Inputs
：
- Total Points:
20 points
- Input Type:
Sink or Source
- Logic 1 Voltage Level:
15~28 VDC
- Logic 0 Voltage Level:
0~5 VDC
- Response Speed:
OFF->ON: 5 ms; ON->OFF: 1 ms
- High-Speed Inputs
：
- Total Points:
4 points
- Input Type:
Sink Input (PNP)*
- Logic 1 Voltage Level:
15~28 VDC
- Logic 0 Voltage Level:
0~5 VDC
- Max Input Frequency:
20KHz
Expansion Modules：
- Number of Connected Modules: Up to 16 iR modules (depending on internal bus power consumption; refer to Power Consumption section)
- Max Digital Input Points:224 (Including built-in 24 points; max 248 input points supported)
- Max Digital Output Points: 112 (Including built-in 16 points; max 128 output points supported)
- Max Analog Input Channels: 64
- Max Analog Output Channels: 64
Indicators：
- ENET Indicators：
- Green Light: Device Status Indication
- Red Light:Device Error Indication
- IO Indicators:
- Green Light: Expansion Status Indication
- Red Light: Expansion Error Indication
Power Supply:
- Input Power: 24 VDC (-15%/+20%)
Nominal Current Consumption: 100mA@24VDC
- Max Current Consumption: 530mA@24VDC
- Internal Bus Supply Current: Max. 2A@5VDC
- Power Consumption: 350mA@5VDC
- Power Isolation:Yes
- Backup Fuse: ≤1.6A Self-Resetting Fuse
Physical & Environmental Specifications:
- PCB Coating: Yes
- Housing Material: Industrial Plastic
- Dimensions (W×H×D): 64 x 109 x 81 mm
- Weight: Approx. 0.27 kg
- Mounting Method: 35 mm DIN Rail Mounting
- Protection Class:IP20
- Operating Temperature: -10° ~ 60°C (14° ~ 140°F)
- Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
- Relative Humidity: 10% ~ 90% (non-condensing)
- Applicable Altitude (Atmospheric Pressure): Below 3,000 meters (70.1kPa)
- Vibration Resistance:10 to 25Hz (2G for 30 minutes in X, Y, Z axes)

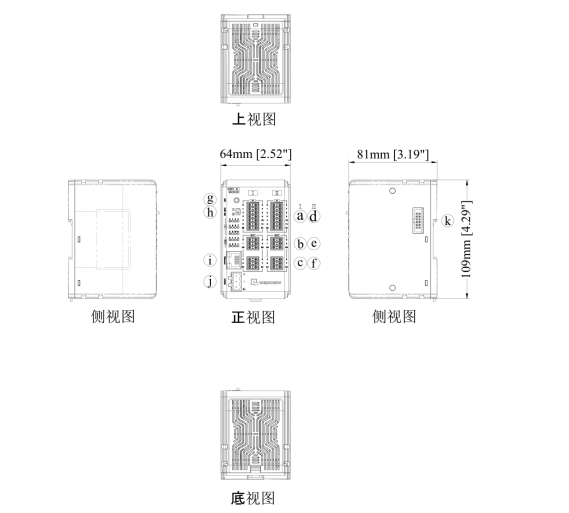

- Dimensional Drawings
